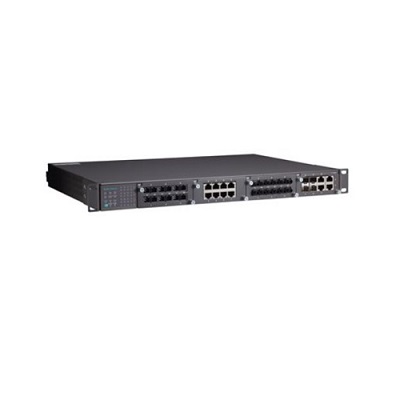

Description: MOXA/ Mosa switch PT-7828-F-HV, PT-7828 series of high-performance Layer 3 industrial Ethernet switches, support Layer 3 routing function, suitable for cross-domain deployment. The PT-7828 switch meets the stringent requirements of substation automation systems (IEC 61850-3, IEEE 1613) and rail transit (EN 50121-4). The PT-7828 series is also equipped with critical packet priority (GOOSE and SMV) capabilities.
Product characteristics
It complies with IEC 61850-3, IEEE 1613 (Substation) and EN 50121-4 (rail transit) standards
Meets EN 50155 part standard
Supports Turbo Ring and Turbo Chain (self-healing time < 20 ms @ 250 switches) and RSTP/STP/MSTP network redundancy
Up to 12 M12 connector ports
24/48 VDC or 110/220 VDC/VAC isolated redundant dual power inputs
Multicast routing protocols PIM-DM and DVMRP are supported
Product parameter
Ethernet interface
Wiring direction
PT-7828-F Series: Front outlet type
PT-7828-R series: rear outlet type
Compatible module
Slot 1/2/3: Pm-7200-8tx, PM-7200-2MSC4TX, PM-7200-2MST4TX, PM-7200-2SSC4TX, PM-7200-4MSC2TX, PM-7200-4SSC2TX, PM-7200-4SSC2TX, PM-7200-4SSC2TX, PM-7200- 6MSC, PM-7200-6MST, PM-7200-6SSC, PM-7200-8SFP, PM-7200-4M12, PM7200-8MTRJ
Slot 4: PM-7200-4GTXSFP and PM-7200-2GTXSFP
Standard
IEEE 802.1D-2004, for the Spanning Tree Protocol (STP)
IEEE 802.1p, for service levels
IEEE 802.1Q, used for VLAN tags
IEEE 802.1s for Multiple Spanning Tree Protocol (MSTP)
IEEE 802.1w for Fast Spanning Tree Protocol (RSTP)
IEEE 802.1X, used for authorization authentication
IEEE 802.3, for 10BaseT
IEEE 802.3ab for 1000BaseT (X)
IEEE 802.3ad, used for LACP port aggregation
IEEE 802.3u for 100BaseT (X) and 100BaseFX
IEEE 802.3x for flow control
IEEE 802.3z for 1000BaseSX/LX/LHX/ZX
Ethernet software features
filtration
802.1Q, GMRP, GVRP, IGMP v1/v2/v3, QinQ VLAN
Industrial agreement
EtherNet/IP, Modbus TCP
manage
Back Pressure Flow control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4, LLDP, and Port Mirror (port mirroring), RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet and TFTP
MIB
Bridge MIB, Ethernet-like MIB, MIB-II, P-BRIDGE MIB, Q-BRIDGE MIB, RMON MIB Groups 1, 2, 3, 9, RSTP MIB
Multicast routing
DVMRP, PIM-DM
substation
IEC 61850 QoS
Redundant protocol
Link aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2
Routing redundancy
VRRP
secure
Access control List, broadcast storm protection, HTTPS/SSL, TACACS+, Port lock, RADIUS, rate limiting, SSH
Time service
NTP Server/Client, SNTP, IEEE 1588 PTP v1/v2
Unicast routing
OSPF, RIPV1/V2, static route
Exchange characteristic
IGMP packet
256
** Maximum number of vlans
64
VLAN ID range
VID 1 to 4094
Priority queue
4
Serial interface
Console port
RS-232 (RJ45)
Input/output interface
Alarm function channel
Pure resistive load: 3 A@ 30 VDC, 240 VAC
Power supply parameter
join
10-pin terminal
Input voltage
-24-24/-48-48/-HV-HV/-24-HV/-48-HV Model: Redundant power module
PT-7828-24 Series: 24 VDC (18 to 36 VDC)
PT-7828-48 Series: 48 VDC (36 to 72 VDC)
PT-7828-HV Series: 110/220 VAC/VDC (85 to 264 VAC and 88 to 300 VDC)
Overload current protection
support
Reverse protection
support
Input current
PT-7828-24 Series: 2.38A@24 VDC
PT-7828-48 Series: 1.12A@48VDC
PT-7828-HV series: 0.49/ 0.26A@110/220 VAC, 0.59/ 0.30A@110/220 VDC
Mechanical characteristic
shell
aluminum
IP level
IP30
Size (no hanging ears)
440 x 44 x 325 mm (17.32 x 1.73 x 12.80 inches)
weight
5900 g (13.11 lb)
Install
19-inch rack mount
Working environment
Operating temperature
-40 to 75°C (-40 to 167°F)
Note: 85°C type test 16 hours
Note: Cold start requires at least 100 VAC @ -40°C
Storage temperature (including packaging)
-40 to 85°C (-40 to 185°F)
Relative humidity
5 to 95% (non-condensing)
