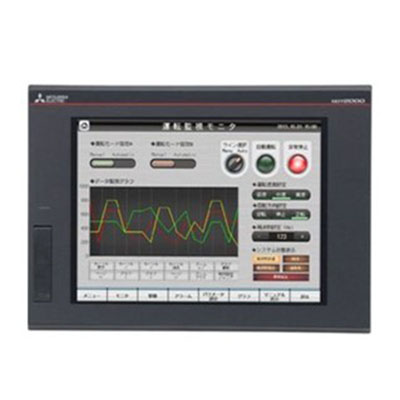

Mitsubishi/ Mitsubishi Motor Touch screen GT2710-VTBA power supply voltage AC100 -- 240V (+10%, -15%), power frequency 50Hz/60Hz (±5), noise voltage 1500Vp-p, noise amplitude 1μs, through noise frequency 25-60Hz noise simulator.
Display soft component: TFT color LCD screen
Screen size: 10.4 inches
Resolution: VGA:640*480 points
Display size: 211.2 (8.315) (W) *158.4 (6.236) (H) mm (inch)
Number of characters displayed:
16 lattice standard font: 40 words *30 lines (full corner)
12 lattice standard font: 53 words *40 lines (full corner)
Display color: 65536 colors
Brightness adjustment: 32 levels
Background light: LED (cannot be replaced)
Background lamp life *3: about 60000 hours (the time when the ambient temperature is 25℃ and the display brightness is 50%)
Input power supply]
Power supply voltage: AC100 -- 240V (+10%, -15%)
Power supply frequency: 50Hz/60Hz (±5)
Maximum visual function: 100VA
Power consumption:
** Large load: below 41
Body unit: less than 17
When the monomer background light is off, the value is less than 10W
Impulse current: below 60A (2ms, ambient temperature 250C, maximum load)
Allowable stopping time: within 20ms (AC100V above)
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
