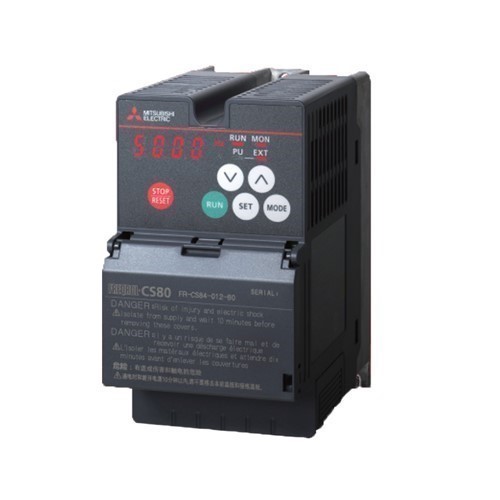

The inverter mitsubishi electric Inverter FR-CS84-012-60(0.4K) is a high-performance compact inverter designed to meet the diverse needs of industrial automation. The mitsu inverter is known for its reliability and efficiency, making it a popular choice in the mitsubishi lgh. Equipped with advanced flux vector control technology, it offers precise speed and torque control, making it ideal for applications that require high starting torque, such as conveyor belts, cranes, and mixers. Its compact design and rich functionality make it an ideal industrial drive solution. series.
Product Specifications
Rated Power: 0.4kW
Rated Current: 1.2A (1.0A when ambient temperature is 50°C)
Overload Capability: 150% for 60 seconds, 200% for 0.5 seconds (inverse-time characteristic)
Power Supply Voltage: Three-phase 380-480V, with allowable voltage fluctuation range of 325-528V
Frequency Range: 0.2-400Hz
Control Modes: Supports V/F control, general flux vector control, and optimal excitation control
Communication Interface: RS-485, supporting Modbus-RTU protocol
Protection Class: IP20, open structure
Cooling Method: Natural cooling
Dimensions and Weight: Dimensions are 68×128×118mm, weight is 0.6kg
Product Features
Sensorless Vector Control: Achieves precise speed and torque control even without sensors, thanks to the auto-tuning function.
Auto-Tuning Function: Parameters can be automatically adjusted without rotating the motor, ensuring stable and reliable system operation.
Compact Design: Small size and lightweight make it easy to install and integrate, perfect for space-limited applications.
Rich I/O Interfaces: Equipped with 5 digital inputs, 1 transistor output, and 2 analog inputs, supporting various control and monitoring functions.
Energy-Saving and Environmentally Friendly: Low power consumption design, compliant with international standards such as CE, UL/cUL, and UKCA.
Applications
Conveyor Belts and Material Handling Equipment: Suitable for logistics, packaging, and food processing industries, providing stable start-up and speed control.
Lifting and Hoisting Equipment: High starting torque design makes it easy to handle heavy-load start-up requirements for cranes and hoists.
Industrial Machinery: Such as mixers and washing machines, improving production efficiency and product quality through precise motor speed control.
HVAC and Water Treatment: Used for speed control of fans and pumps, achieving energy savings and reduced consumption.
Instructions for Use
Installation and Wiring:
The installation environment should be dust-free, free of corrosive gases, free of strong electromagnetic interference, and ensure good heat dissipation. Follow the wiring diagram strictly to ensure correct connections of power, signal, and motor lines. Grounding protection must comply with electrical safety standards. The mitsubishi lgh series inverters are designed for easy installation and maintenance.
Parameter Settings:
Set motor parameters, control modes, and frequency ranges according to specific application needs. Supports advanced functions such as PID control and multi-speed control to meet complex control requirements.
Maintenance and Inspection:
Regularly clean dust from fans and heat sinks to ensure unobstructed cooling systems. Check electrical connections for firmness and verify parameter settings periodically. Regular maintenance ensures the longevity and performance of the mitsubishi lgh inverter.
Precautions
Environmental Conditions: Avoid using in high-temperature, high-humidity, or strong electromagnetic interference environments.
Power Requirements: Ensure stable power supply voltage to prevent damage from voltage fluctuations.
Safe Operation: Avoid contact with live parts during operation. Disconnect power and wait for capacitor discharge during maintenance. Safety is a priority when using the mitsubishi lgh inverter.
FAQ
How to Perform Motor Auto-Tuning?
Motor auto-tuning is an essential step to ensure compatibility between the mitsu inverter and the motor, enhancing control accuracy and system stability. During auto-tuning, the inverter mitsubishi electric inverter injects current into the motor, so it is crucial to ensure correct connections between the motor and inverter, and that the inverter is in a ready state. After auto-tuning, the inverter will automatically adjust control parameters based on the actual motor parameters to achieve optimal performance.
How to Configure the Communication Interface?
This inverter mitsubishi electric inverter supports RS-485 communication interface with built-in Modbus-RTU protocol. When configuring the communication interface, use shielded cables for connections and ensure proper grounding of the shielding layer. Set the inverter’s communication address, baud rate, and data bits according to the protocol requirements to match the parameters of the host computer.
How to Select the Power Range of the Inverter?
Choose the power range based on the actual load of the motor. If the load is heavy or requires high starting torque, it is recommended to select an inverter with slightly higher power. Considering system safety factors, it is usually advisable to choose an inverter with power slightly higher than the motor’s rated power. Long-term overload can affect the lifespan and performance of the mitsu inverter, so it should be avoided. The mitsubishi lgh series offers a wide range of power options to suit various applications.
What is the Cooling Method?
This inverter mitsubishi electric inverter uses natural cooling. Ensure sufficient space around the inverter for air circulation during installation, and avoid installing it in enclosed or poorly ventilated environments. Regularly cleaning dust from heat sinks can effectively prevent overheating caused by poor cooling.
How to Avoid Electromagnetic Interference with FR-CS84-012-60(0.4K)?
The inverter mitsubishi electric inverter is equipped with an EMC filter and complies with relevant electromagnetic compatibility standards. When wiring, avoid placing signal cables close to power cables and use shielded cables for signal connections. Ensure proper grounding of the equipment to comply with electrical safety standards.
What Protective Functions Does FR-CS84-012-60(0.4K) Offer?
Overload Protection: The inverter automatically reduces frequency or stops operation when the motor load exceeds the rated value.
Overheat Protection: Built-in temperature sensors automatically shut down the inverter when the temperature exceeds the set value.
Overvoltage and Undervoltage Protection: The inverter automatically stops when the power supply voltage is too high or too low. The mitsubishi lgh series offers comprehensive protection features to ensure system safety.
How to Perform Regular Maintenance on the Inverter?
Regularly inspect the inverter’s appearance for any damage or abnormalities. Clean dust from fans and heat sinks to ensure proper operation of the cooling system. Check the connections of power and signal cables to ensure good contact. Regular maintenance is essential for the long-term performance of the mitsubishi lgh inverter.
What Should Be Considered When Installing the Inverter?
Install in an environment with good ventilation, free of dust and corrosive gases. Ensure vertical installation of the inverter for better heat dissipation. When connecting power, ensure the power cable meets the required specifications and pay attention to the correct phase sequence. Proper installation ensures the optimal performance of the mitsubishi lgh inverter.
How to Choose the Control Mode?
Select the control mode based on application needs. For applications requiring precise speed control, choose the general flux vector control mode. V/F control mode is suitable for general constant-speed control and is simple to use. After selecting the control mode, set the parameters according to specific application requirements. The mitsubishi lgh series offers versatile control modes to meet diverse industrial needs.
How to Set the Frequency Reference Channel of the Inverter?
Frequency reference methods include panel settings, external analog signals, or digital signals. Ensure the stability and accuracy of the signal source, such as using external analog signals with strong interference resistance.Configure the parameters according to the selected frequency reference method, such as setting the input range of the signal and the corresponding frequency range.
