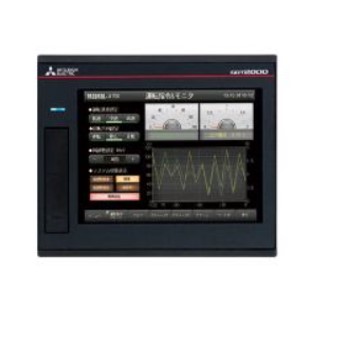

Mitsubishi/ Mitsubishi Motor Touch screen GT2705-VTBD power supply voltage is DC24V (+25%, -20%), impulse current is less than 69A (1ms, ambient temperature 250C, maximum load), suitable fastening torque (terminal block terminal bolt) 0.5N.m -- 0.8N.m.
【 Display Department 】
Display soft component: TFT color LCD screen
Screen size: 5.7 inches
GT2705-VTBD Resolution: VGA: 640*480 points
Display size: 115.2 (W) *86.4 (H) [mm]
Number of characters displayed:
16 lattice standard font: 40 words *30 lines (full corner)
12 lattice standard font: 53 words *40 lines (full corner)
Display color: 65536 colors
Brightness adjustment: 32 levels
Background light: LED (cannot be replaced)
Background lamp life: about 60000 hours (using the ambient temperature of 25℃, display brightness of 50% time)
【 Touch screen 】
Mode: Analog resistance film mode
Key Size: ** Small 2*2 points (per key)
Also press: ** Large 2 points
Weight (except installation parts) : 1.0KG
Power supply voltage: DC24V (+25%, -20%)
Power consumption:
** Large load: below 30W
Body monomer: less than 7W
When the background light of the body unit is off: less than 5W
Impulse current: below 69A (1ms, ambient temperature 250C, maximum load)
Allowable stopping time: within 10ms
Life: more than 1 million times (operating force below 0.98N)
