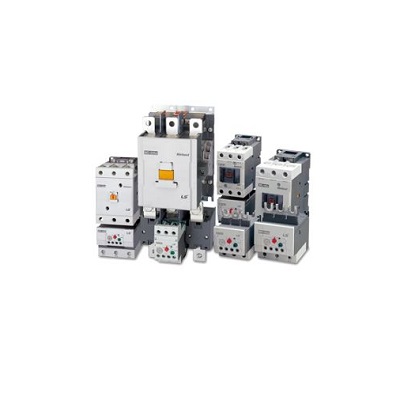

Introduction: Metasol contactor adopts the best technology, closed structure design, compact size, convenient connection design · Rated current: 9 -- 105A (3P), 9 -- 800A (4P) · Rated voltage: AC 690/1000V · Use for remote switching and disconnecting as well as frequent starting and control of AC motors · Application range Used in wind power, photovoltaic, HVAC and other industries.
Product characteristics
Closed structure improves safety and prevents arc leakage
A simple design with a diamond-cutting concept
Compact size and convenient connection provide an economical solution
Type 2 coordinated protection to form a perfect system with peripheral equipment
Rich and complete functional expansion accessories
Anti-touch finger safety protection design
Comply with IEC, UL standards of the best products
Product parameter
Contactor type (3P) : MC 9b
Rated working voltage Ue: AC 690V
Rated insulation voltage Ui: 690V
Rated impulse withstand voltage Uimp: 6kV
Rated working current In
AC-3 380/440V: 9A
AC-1:25A
Short-time withstand current Icw
1s: 250A
10s: 110A
30s: 70A
1 minute: 61A
3min: 45A
10min: 30A
≥15min: 26A
Impact resistance (1/2 sine wave =11ms)
Breaking: 8G
Closed: 10G
Seismic performance (5 -- 300Hz)
Break: 2G
On: 4G
On-off time (AC coil)
Connected: 15 -- 30ms
Breaking: 4 -- 19ms
On-off time (DC coil)
Connected: 40 to 60ms
Breaking: 4 -- 19ms
Ambient temperature
Storage: -30 - +65°C
Operation: -5 -- +55°C
** Maximum working altitude (no drop capacity) : 3000m
Electrical life (times) : 2.5 million
Mechanical life (times) : 15 million
** Maximum operating frequency (times/hour) : 1800
Optional auxiliary contacts and standard number: UA-1/UA-2/UA-4
Number of auxiliary contacts in standard configuration: 1alb
