Brand characteristics
● Based on more than 30 years of electrical professional experience focusing on customer needs
● To provide you with fast and flexible installation experience, to avoid the maintenance and operation of the security concerns
● Adapt to a variety of challenging environments, while ensuring that the cost efficiency is reduced year by year
● Is the current smart, simple, intelligent terminal power distribution products
● Meet the requirements of maximum use of electricity and environmental protection, so that you can use energy while reducing the impact on energy consumption and the environment to a minimum
LS inverter, the full name of LS AC variable frequency governor, by providing a variety of application configurations, the direct current into alternating current, and by changing the voltage and frequency of the ordinary power input to control the speed of the motor, to meet different industrial needs, so as to realize the energy saving and environmental protection of the automation system. IGX is a sensorless vector controlled frequency converter based on IG5A. It has better low-speed torque characteristics, IP protection and application functions, and has been carefully improved from appearance, structure, heat dissipation, circuit design, software and many other aspects to improve the reliability and ease of use of the product to further meet the requirements of customers in different applications.
Main function
1, V/F control and improved automatic torque compensation: do not need too much setting and test case automatically obtain in line with the application of the V/F curve |SV0370IS7-4NO
2, no vector sensor control: through sensorless vector control can obtain better dynamic characteristics and low frequency torque characteristics
3, parameter self-tuning: optimize sensorless vector control and V/F torque automatic boost control characteristics
4, built-in RS485 communication: built-in RS-485 interface, support LSLG-BUS protocol and MODBUS
5, up/down function: three UP/DOWN control modes can be defined, and the current frequency can be saved as the initial value of UP/DOWN. Korea LS inverter |SV0370IS7-4NO
6, PID control: there are two working modes, ordinary PID control and process PID control, which is convenient for users to choose the appropriate PID control mode for different work occasions. Both sleep and wake functions are available to save energy
7, external (mechanical) lock control: the opening and closing control of the external lock is used to start and stop the lifting equipment
8. Kinetic energy buffer: The inverter can continue to work in the case of sudden power drop or instantaneous power failure

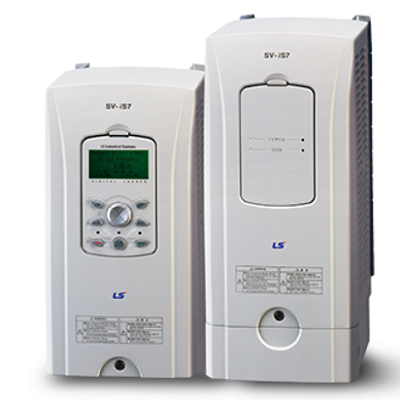

iS7 Series Sensorless Vector Converter [Constant torque]
SV0008IS7-4NO Power 0.75KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0015IS7-4NO Power 1.5KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0022IS7-4NO Power 2.2KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0037IS7-4NO Power 3.7KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0055IS7-4NO Power 5.5KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0075IS7-4NO Power 7.5KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0110IS7-4NO Power 11KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0150IS7-4NO Power 15KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0185IS7-4NO Power 18.5KW(Input :3 phase 380V/ Output :3 phase 0~380V)
SV0220IS7-4NO Power 22KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0300IS7-4NO Power 30KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0370IS7-4NO Power 37KW (Input :3 phase 380V/ Output :3 phase 0~380V)
SV0450IS7-4NO Power 45KW (Input :3 phase 380V/ Output :3 phase 0~380V)以上翻译结果来自有道神经网络翻译（YNMT）· 通用场景
逐句对照
