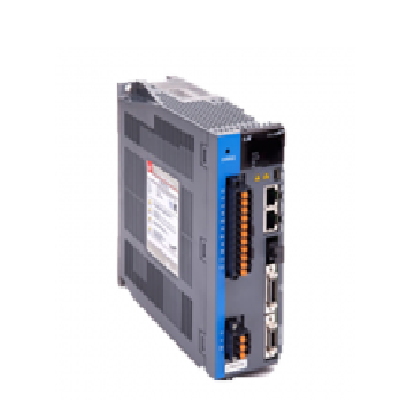

About: LS power generation servo driver L7NHB075U high-speed real-time performance, powerful synchronization mechanism better EtherCAT communication speed (** small 250, support distributed clock) Support CoE, EoE, FoE driver speed response rate of 1.6kHz, The more standardized control area provides 4-segment filter notch to achieve real-time vibration suppression function through FFT real-time online gain self-tuning function.
Product details
Input power supply
Main power supply: 3-phase AC280-480 [V(-15 -- 10[%]), 50-60 [Hz]
Control power supply: single-phase AC380 -- 480[V(-15 -- 10[%]),50 -- 60[Hz]
Rated current [A] : 22.8
High current [A] : 57
Encoder types: orthogonal (incremental), BiSS-B,BiSS-C(** value, incremental), Tamagawa serial (** value, incremental), Heidenhain EnDat 2.2, Sine, Hall analog
Control performance
Control speed range: ** Max 1: 5000
Speed response frequency: ** Max 1.6[kHz or above (for 19bit serial encoder)
Velocity change rate: soil 0.01[96] below [load change 0-100%]
Soil 0.1[9%] below [temperature 2510°C]
Control torque repetition accuracy: within 1%
Digital signal input/output
Digital signal input: A total of 8 channels (assignable)15 assignable functions: (*POTNOT*HOME,STOPPCON,GAIN2, P_CLN_CLPROBE1PROBE2,EMGA RSTSVONLVSF1LVSF2) Note)* for standard allocation functions
Touch Probe input: A total of 2 input contacts. Each contact can provide rising edge, falling edge detection function.
Digital signal output: Voltage level: DC24[V]10%,120[mA]
Analog input/output
Analog input:
Input voltage :-10[M] -- +10[M]
Function: Analog torque limit a total of 1 channel (non-assignable)
Analog output: A total of 2 channels (assignable)25 assignable functions
Built-in function
Dynamic braking: standard built-in (action when servo alarm or servo OFF)
Regenerative braking: can be basically built-in, external installation
Display function: 7 segments (5 DIGIT)
Self-setting function: Press the [MODE] key to change the content displayed in 7 segments.
Additional functions: Gain self-tuning function
Protection function: overcurrent, overload, overcurrent limit, overheat, overvoltage, low voltage, overspeed, encoder failure, position following error is too large, current induction failure
