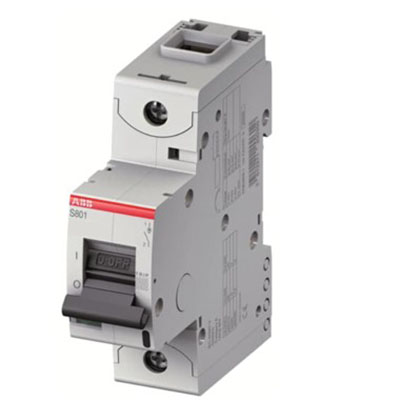

The S801C-K20 is a 1-pole High Performance Circuit breaker with K-Characteristic, with cage terminal and a rated current of 20 A. It is a current limiting device with a maximum breaking capacity of 25kA at 240/415V. It can be used for voltages up to 254/440V and in DC as well. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S801C-K20 complies with IEC/EN 60898-1 and IEC/EN 60947-2 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S801C-K20 more comfortable. Due to the fast arc extinction of S801C-K20 your application will be secured.
Rated Insulation Voltage (Ui):acc. to IEC/EN 60664-1 500 V
Rated Impulse Withstand Voltage (Uimp):8 kV
Input Voltage Type:AC/DC
Rated Current (In):20 A
Rated Operational Current (Ie):20 A
Contact Position Indication:ON / OFF / TRIP
Energy Limiting Class:3
Electrical Endurance:10000 cycle
Mechanical Endurance:10000 cycle
Number of Poles:1
Number of Protected Poles:1
Overvoltage Category:IV
Tightening Torque:3.5 N·m
31 in·lb
Release Type:K
Actuator Marking:I / O
Housing Material:Insulation group I, RAL 7035
