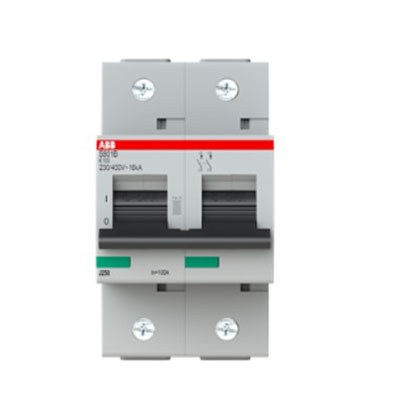

The S802B-K100 is a 2-pole High Performance Circuit breaker with K-Characteristic, with cage terminal and a rated current of 100 A. It is a current limiting device with a maximum breaking capacity of 16kA at 230/400V. It can be used for voltages up to 230/400V. It has two different tripping mechanisms, the thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. The S802B-K100 complies with IEC/EN 60947-2 and EN 60898-1 and allows the use for residential, commercial and industrial applications. It has numerous of approvals, therefore it can be used worldwide. The extensive range of accessory makes the use of S802B-K100 more comfortable. Due to the fast arc extinction of S802B-K100 your application will be secured.
Rated Insulation Voltage (Ui):acc. to IEC/EN 60664-1 500 V AC
Rated Impulse Withstand Voltage (Uimp):6 kV
Input Voltage Type:AC/DC
Rated Current (In):100 A
Rated Operational Current (Ie):100 A
Frequency (f):50...60 Hz
Rated Frequency (f):50...60 Hz
Power Loss:16 W
at Rated Operating Conditions per Pole 8 W
Contact Position Indication:ON / OFF / TRIP
Energy Limiting Class:3
Number of Poles:2
Number of Protected Poles:2
Overvoltage Category:III
Tightening Torque:3.5 N·m
Release Type:K
Actuator Marking:I / O
Housing Material:Insulation group I, RAL 7035
