Technical data

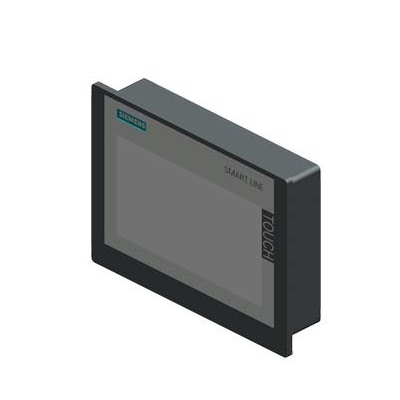

SIMATIC HMI SMART 700 IE V3, Smart Panel, Touch operation, 7 "widescreen TFT display, 65536 colors, RS-422/485 port, Ethernet (RJ45) port, host USB Type A, RTC support, WinCC flexible SMART with CE certificate, the lowest version of project mode; Contains open source software, heating is provided free of charge see accompanying CD
General information
Product Type Mark 700 IE V3
display
The display size is TFT
The screen is 7 in diagonal
The screen width is 154.1mm
Screen height 85.9mm
Number of colors 65 536
Resolution (pixel)
● Horizontal image resolution of 800 pixel
● Vertical image resolution 480 pixel
backlight
● MTBF background lighting (at 25 °C) 20 000 h
● Adjustable background lighting No
Operating element
Keyboard font
● Function keys
- The number of function keys is 0
- The number of function keys with LED is 0
● Keys with LED No
● System key No
● Digital keyboard is; On-screen keyboard
● Alphanumeric keyboard is; On-screen keyboard
Touch screen
● Touch screen specifications are
Installation mode/Installation
Can be installed vertically (portrait format) yes
Can be installed horizontally (landscape format) is
The maximum allowable tilt Angle is 35° without external ventilation
Supply voltage
Voltage type of the power supply DC
Rating (DC) 24 V
Allowable range, lower limit (DC) 19.2 V
The upper limit (DC) is 28.8V
Input current
Consumption current (rated) 200 mA
Consumption current, maximum 340 mA
Turn on the current pulse I²t 0.1A ²·s
processor
The processor type is ARM, 600 MHz
memory
Flash memory is
RAM is
Available memory for user data is 8 Mbyte
