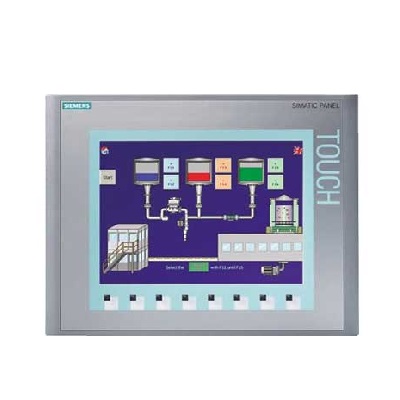

Siemens Siemens TP 1500 TFT LCD 15 in Color hmi touch screen with backlight 1024 x 768pixels
Model feature introduction
SIMATICHMIKTP400/600/700/1000 / TP1500 series
The series offers panels with 4 -, 6 - and 10-inch displays, keypads or touch controls, and comes with a 15-inch base panel touch screen. Each SIMATIC base panel is designed with IP65 protection levels, suitable for simple visualization tasks even in harsh environments. Other advantages include integrated software capabilities (such as reporting systems), profile management, or graphical capabilities.
3.8 to 15in. Ideal entry level series for operating and monitoring simple machines and equipment through the use of pixel graphics displays to achieve clear process demonstrations. Intuitive operation using touch and touch function keys. Equipped with all the necessary basic functions, such as alert logging, configuration file management, charting, vector graphics, and language conversion. It can be used by WinCCflexibleCompact or STEP7BasicEngineeringSoftware (for S7-1200) of HMI configuration software configuration. Easily connected to the controller via an integrated Ethernet interface or a standalone model with RS485/422
Note Ethernet cables and MPI adapters are only available under certain circumstances - Ethernet cables (for PN screens only) MPI cables (for DP devices only) are available for download and testing. However, it is not offered and must be purchased separately.
Model parameter introduction
Attribute value
Manufacturer series TP1500
Display type TFTLCD
The display size is 15in
Display resolution: 1024x768pixels
Display color
Number of ports 1
Port type RJ45
Processor type 32-bit RISC
The onboard memory is 1024kB
The backlight is
The supply voltage is 24V DC
Length 400mm
The dimensions are 400x310x60mm
** High operating temperature +40°C
The IP protection level is IP20 and IP65
The width is 310mm
Depth 60mm
** Low operating temperature 0°C
