Technical data

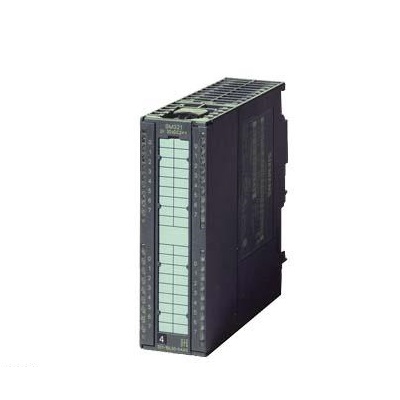

SIMATIC S7-300, Digital Output SM 322, Potential Isolation, 8 DA, 120/230V AC, 1A, 1 each 20 needles
Supply voltage
Load voltage L1
● Rating (AC) 230V; 120/230 V AC
● Allowable range, lower limit (AC) 93 V
● Allowable range, upper limit (AC) 264V
● Allowed frequency range, lower limit 47 Hz
● Allowed frequency range, maximum 63 Hz
Input current
Voltage from load L1 (no load), maximum 2 mA
From the backplane bus DC 5 V, Max 100 mA
Power loss
Power loss, typical value 8.6W
Digital output
Number of output terminals 8
Short circuit protection is; Fuse 8A, 250 V; Each group
● The current required to cause the safety cut-off, minimum 40 A
● Response time, maximum 300 ms
Control digit input is
Maximum specification for motor starter that meets NEMA protection Grade 5 Meets NEMA
Spare fuse 8 A/ fast blown
Zero cross switch is; Max 60 V
Output on-off capability
● The maximum value of lighting load is 50 W
Output voltage
● For signal "1", minimum L1 (-1.5V)
● Minimum L1 (-1.5V) for signal "1" (at maximum current)
● For signal "1" (at minimum current), minimum L1 (-8.5V)
Output current
● For signal "1" rating 2 A
● For signal "1" allowable range 0 to 40 ℃, minimum 10 mA
● For signal "1" allowable range 0 to 40 ℃, maximum 2 A
● For signal "1" allowable range of 40 to 60 ℃, minimum value of 10 mA
● For signal "1" the allowable range of 40 to 60 ℃, the maximum 1 A
● Minimum load current 10 mA for signal "1"
● For the allowable surge current of signal "1", the maximum is 20 A; Maximum 1 AC cycle
● For the residual current of signal "0", the maximum is 2 mA
The output delay when the resistance is loaded
● From "0" to "1", a maximum of 1 AC cycle
● From "1" to "0", maximum 1 AC cycle
The two outputs are in parallel
● Used to increase power No
● For redundancy control load is
Switching frequency
● The maximum value of resistance under load is 10 Hz
● The maximum value of inductive load is 0.5Hz
● For inductive load (in accordance with IEC 60947-5-1, AC15), the maximum is 0.5Hz
● The maximum value under lighting load is 1 Hz
Total current at output (per group)
Horizontal mounting position
- The maximum temperature is 40 ℃, and the maximum value is 4 A
- The maximum is 60 ℃ and the maximum is 2 A
Vertical mounting position
- The maximum value is 40 ℃ and the maximum value is 2 A
Conductor length
● Shielding, maximum 1 000 m
● Unshielded, maximum 600 m
Alarm/diagnosis/status information
Alarm no
The diagnostic function is; The fuse is disconnected or the load voltage is insufficient
alarm
● Check whether the alarm is generated
diagnosis
● Disconnect No
● Short circuit No
● The fuse is blown
● Load voltage loss is
Diagnostic display LED
● Rated load voltage PWR (Green) Yes
● Insurance OK FSG (green) Yes
● Cumulative failure SF (red) is
● Digital output status display (green) Yes
Potential isolation
Digital output potential isolation
● Between the channels yes
● Between channels, group the number of points 4
● Between the channel and backplane bus is; Photoelectric coupler
insulation
Insulation test, using AC 1500 V
Connect technology/title
Required front plug 20 pins
dimension
Width 40mm
Height 125 mm
Depth 120 mm
weight
Weight, about 275 g
