Technical data

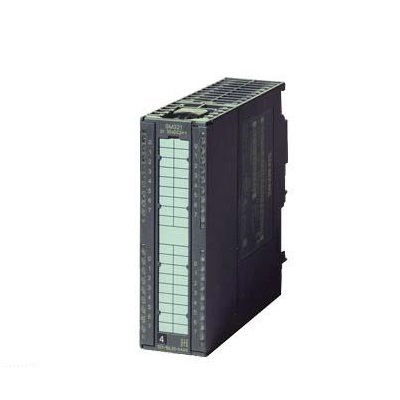

SIMATIC S7-300, Digital Output SM 322, Potential isolation, 32 DA, 120V/230V AC, 1A, double amplitude, 2x 20 poles
Supply voltage
Load voltage L1
● Rating (AC) 120 V; 120/230 V AC
● Allowable range, lower limit (AC) 79 V
● Allowable range, upper limit (AC) 264V
● Allowed frequency range, lower limit 47 Hz
● Allowed frequency range, maximum 63 Hz
Input current
Voltage L1 from load (no load), Max. 10 mA
From the backplane bus DC 5 V, maximum 190 mA
Power loss
Power loss, typical value 25 W
Digital output
Number of digital output terminals 32
Short circuit protection No
Control digit input is
Maximum specification size of motor starter in line with NEMA Protection Class 4 In line with NEMA
Zero cross switch is; Max 60 V
Output on-off capability
● The maximum value of lighting load is 50 W
Output voltage
● For signal "1", minimum L1 (-0.8V)
Output current
● For signal "1" rating 1 A
● For signal "1" allowable range 0 to 40 ℃, minimum 10 mA
● For signal "1" allowable range 0 to 40 ℃, maximum 1 A
● For signal "1" allowable range of 40 to 60 ℃, minimum value of 10 mA
● For signal "1" the allowable range of 40 to 60 ℃, the maximum 1 A
● Minimum load current 10 mA for signal "1"
● For the allowable surge current of signal "1", the maximum is 10 A; Each set (for 2 AC cycles)
● For the residual current of signal "0", the maximum is 2 mA
The output delay when the resistance is loaded
● From "0" to "1", a maximum of 1 AC cycle
● From "1" to "0", maximum 1 AC cycle
The two outputs are in parallel
● Used to increase power No
● For redundancy control load is; Only the same group output
Switching frequency
● The maximum value of resistance under load is 10 Hz
● The maximum value of inductive load is 0.5Hz
● For inductive load (in accordance with IEC 60947-5-1, AC15), the maximum is 0.5Hz
● The maximum value under lighting load is 1 Hz
Total current at output (per group)
Horizontal mounting position
- The maximum temperature is 40 ℃, and the maximum value is 4 A
- The maximum is 60 ℃ and the maximum is 3 A
Vertical mounting position
- The maximum temperature is 40 ℃, and the maximum value is 4 A
Conductor length
● Shielding, maximum 1 000 m
● Unshielded, maximum 600 m
Alarm/diagnosis/status information
Alarm no
The diagnostic function is; The fuse is disconnected or the load voltage is insufficient
alarm
● Check whether the alarm is generated
Diagnostic display LED
● Cumulative failure SF (red) is
● Digital output status display (green) Yes; Each channel
Potential isolation
Digital output potential isolation
● Between the channels yes
● Between channels, group the number of points 8
● Between the channel and backplane bus is; Photoelectric coupler
insulation
Insulation test, using 4000 V DC
Connect technology/title
Required front plug 20 pins
dimension
Width 80 mm
Height 125 mm
Depth 117 mm
weight
Weight, about 500 g
