Technical data

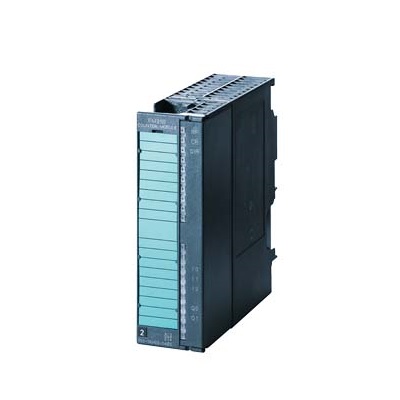

SIMATIC S7-300, counter module FM 350-1 for S7-300, counting function up to 500 kHz 1 channel used to connect 5V and 24V incremental encoder synchronization mode; Measurement range types include project group state package on CD
Supply voltage
Auxiliary voltage 1L+, load voltage 2L+
● Rating (DC) 24 V
● Allowable range, lower limit (DC) 20.4V; Dynamic 18.5 V
● Allowable range, upper limit (DC) 28.8V; Dynamic 30.2V
Input current
Voltage from load 1L+ (no load), maximum 40 mA
From the backplane bus DC 5 V, maximum 160 mA
Sensor power supply
5 V sensor power supply
● 5 V is; 5.2 V ±2 %
● Output current, maximum 300 mA
24 V sensor power supply
● 24 V is; 1L+ (-3 V)
● Output current, maximum 400 mA
Power loss
Power loss, typical value 4.5 W
Digital input
Number of input terminals 3
Function 1 for door opening, 1 for door closing, 1 for counter recording
Input voltage
● For signal "0" -28.8... +5V
● For signal "1" +11 to +28.8V
Input current
● For signal "1", typical value 9 mA
Digital output
Number of digital output ends 2
Short circuit protection is; Electron pulse
Limit of induction shutdown voltage 2L+ (-39 V)
Output voltage
● Maximum 3V for signal "0"
● For signal "1", minimum 2L+ (-1, 5V)
Output current
● 0.5 A rating for signal "1"
● For signal "1" allowable range 0 to 60 ℃, minimum value 5 mA
● For signal "1" allowable range 0 to 60 ℃, maximum 0.6A
The output delay when the resistance is loaded
● From "0" to "1", up to 300 µs
sensor
Connectable sensor
● Incremental encoder (symmetric) yes; With two 90° transposed impulse trains
● Incremental encoder (asymmetric) Yes
● The 24 V starter is Yes
● 24V direction sensor is; One pulse train, one direction level
counter
Counter input terminal quantity 1; 32 bits or ±31 bits
Counter input 5 V
● Type RS 422
● Terminal resistance 220 Ω
● Differential input voltage 1, 3V
● Counting frequency, maximum 500 kHz
Counter input 24 V
● Input voltage of signal "0" -28.8... +5V
● Input voltage of signal "1" is +11 to +28.8V
● Input current of signal "1", typical value 9 mA
● Counting frequency, maximum 200 kHz
● Minimum pulse width 2.5µs
Potential isolation
Digital input potential isolation
● Between the channel and backplane bus is; Photoelectric coupler
Digital output potential isolation
● Between the channel and backplane bus is; Photoelectric coupler
Counter potential isolation
● Between the channel and backplane bus is; Photoelectric coupler
insulation
Insulation test, use 500 V
Connect technology/title
The required front plug 1x 20 pins
dimension
Width 40mm
Height 125 mm
Depth 120 mm
weight
Weight, about 250 g
