Technical data

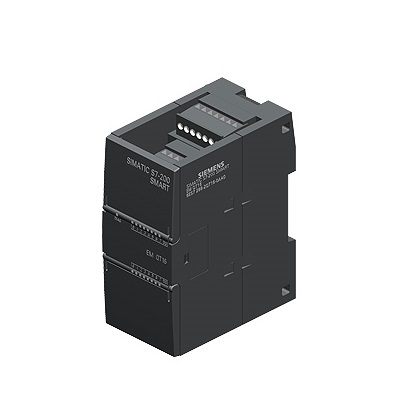

SIMATIC S7-200 SMART, analog output SM AQ02, 2 AO, +/-10V, 11 Bit resolution, or 4-20mA, 10 Bit resolution
General information
Product Type Logo SM AQ02, AQ 2x11 bit
CiR configuration in action
Parameter assignment can be changed in RUN mode. No
Supply voltage
Voltage type of the power supply DC
Rating (DC) 24 V; -15 / +20 %
Allowable range, lower limit (DC) 20.4V
The upper limit (DC) is 28.8V
Input current
Consumption current, typical value 50 mA
From the backplane bus DC 5 V, typical value 80 mA
Power loss
Power loss, typical value 1.5 W
Analog input
The number of analog inputs is 0
Analog output
The number of analog output terminals is 2; Current or voltage
Output range, voltage
● -10 V to +10 V Yes
Output range, current
● 0 to 20 mA Yes
Load resistance (in rated output range)
● Minimum voltage output 1 kΩ
● The maximum value of current output is 500 Ω
Composition of analog values at the output end
Integration and conversion time/resolution per channel
● Resolution (bits including symbols) with overmodulation, up to 11 bits
● Synchronous operation mode resolution (including overrange) Voltage mode: 10 bit + symbol bit, current mode: 10 bit
Alarm/diagnosis/status information
The diagnostic function is
diagnosis
● Power supply voltage monitoring is
● The broken line is
● Short circuit is
Diagnostic display LED
● For output end status is
Protection level and protection category
Protection level IP Address IP20
Standards, licenses, certificates
CE mark is
dimension
Width 45 mm
Height 100 mm
Depth 81 mm
weight
Weight, about 147.1 g
