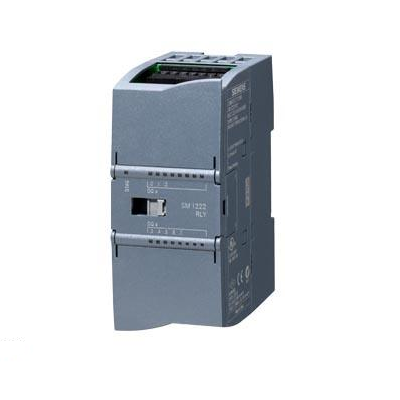

SIMATIC S7-1200, digital output SM 1222,16 digital output terminals,
24V DC, M switch (Sinking Output), NPN transistor 0.5A
Supply voltage
Allowable range, lower limit (DC) 20.4V
The upper limit (DC) is 28.8V
Input current
From the backplane bus DC 5 V, maximum 140 mA
Power loss
Power loss, typical value 2.5W
Digital output
Number of output terminals 16
● 1 in the component
M switch is
Short circuit protection No; External presets
Induction type shutdown voltage limit 45 V, typical value
Output on-off capability
● The maximum value of resistance under load is 0.5A
● The maximum value of lighting load is 5 W
Output voltage
● Rating (DC) 24 V
● For signal "0" maximum L+ -0.75V DC, 10k load
● For signal "1", minimum 0, 5V
Output current
● 0.5 A rating for signal "1"
● For the residual current of signal "0", the maximum is 75 µA
