Technical data

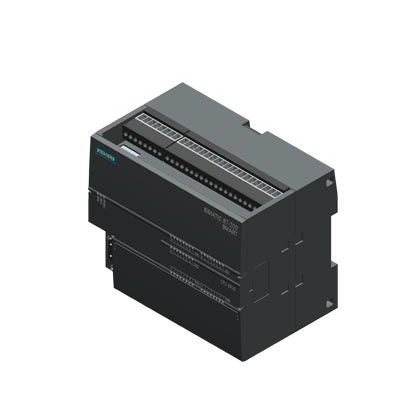

SIMATIC S7-200 SMART, CPU ST40, top, DC/DC/DC, airborne I/O: 24 24V DC digital inputs; 16DO 24V DC; Power: DC 20.4-28.8V DC, program storage/data storage 40 KB network server support
General information
Product Type Label CPU ST40 DC/DC/DC
packaged
● Engineering system STEP 7 Micro/WIN SMART
Installation mode/Installation
Rail installation is; Standard guide rail
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 20.4V
The upper limit (DC) is 28.8V
Input current
Consumption current, maximum 680 mA; 24 V DC
On current, maximum 11.7A; 28.8V hour
Output current
Current output, maximum 300 mA; 24 V DC sensor power supply
Used for backplane bus (DC 5 V), maximum 1.4 A; Maximum 5 V DC for EM bus
Power loss
Power loss, maximum 18 W
memory
Memory type DDR
Flash memory is
RAM is
Available storage for user data is 16 kbyte
Memory size 24 kbyte; Program memory
Micro memory card is; microSDHC Card (Optional)
buffering
● Existence is; Maintenance free, RTC takes 7 days.
CPU- Processing time
For bit operations, the typical value is 150 ns; / Description
For word operations, the typical value is 1.2 µs; / Description
For floating-point arithmetic, the typical value is 3.6 µs; / Description
Address range
Peripheral address range
● Input end 144 bytes; 256 - bit digital input and 56 - word analog input
● Output end 144 bytes; 256 bit digital output and 56 word analog output
time
clock
● Type hardware clock, not buffered
● Hardware clock (real-time clock) Yes
● Buffering lasts for 7 days
● Daily deviation, maximum 120 s; 25 °C in the range of 120s/ month
Digital input
Number of digital input terminal 24; integration
● Can be used to achieve the technical function of the input end 6; HSC (high-speed computing)
Source input/leaky input yes
The number of inputs that can be controlled simultaneously
All mounting positions
- The maximum value is 40 ° C and the maximum value is 24 ° C
Input voltage
● Input voltage type DC
● Rating (DC) 24 V
● For signal "0" I0.0 to I0.3 < 1V DC; I0.4 to I2.7 < 5 V DC
● For signal "1" I0.0 to I0.3 > 4V; I0.4 to I2.7 > 15V
Input current
● For signal "0", maximum (allowed closed circuit current) 1 mA
● For signal "1", the typical value is 4 mA
Input delay (when input voltage is rated)
For standard input
- Parameterizable Yes; You can choose from four groups: 0.2ms, 0.4ms, 0.8ms, 1.6ms, 3.2ms, 6.4ms and 12.8ms
- When the value ranges from 0 to 1, the minimum value is 0.2 ms
- When the value ranges from 0 to 1, the maximum value is 12.8 ms
For alarm input
- Parameterizable Yes
Used for technical functions
- Parameterizable Yes; 6 single-phase: 4 HSCS, 200 kHz; 2 HSCS at 30 kHz 4 A/B phase: 2 HSCS at 100 kHz; 2 HSCS at 20 kHz
Conductor length
● Shielding, maximum 500 m; 50 m is used for technical functions
● Unshielded, maximum 300 m; For technical functions: No
Digital output
The number of digital output terminals is 16; transistor
● the fast output terminal 3; 100 KHz pulse train output
Output on-off capability
● The maximum value of resistance under load is 0.5A
● The maximum value of lighting load is 5 W
Output voltage
● For signal "1", minimum DC 20 V
Output current
● 0.5 A rating for signal "1"
● For the residual current of signal "0", maximum 10 µA
The output delay when the resistance is loaded
● From "0" to "1", the maximum is 3µs; Standard output, up to 3µs; Pulse output, Max (Qa.0 ~ Qa.3) 1 µs
● From "1" to "0", maximum 200 µs; Standard output, up to 200 µs; Pulse output, Max (Qa.0 ~ Qa.3) 50 µs
Switching frequency
● Pulse output of resistance load, maximum 100 kHz
Relay output terminal
● The number of relay output terminals is 0
Conductor length
● Shielding, maximum 500 m
● Unshielded, maximum 150 m
interface
Number of industrial Ethernet interfaces 1
RS 485 Number of ports 1
1. Interface
Interface type PROFINET
Potential isolation is; Isolated transformer, 1500V AC
The automatic calculation of transmission rate is; 10/100 Mbit/s
Auto-negotiation is
Autocross is
Physical interface
● RJ 45 (Ethernet) Yes
agreement
● PROFINET IO controller is; Since V2.4
● PROFINET IO device is; Intelligent equipment (V2.5 and above)
PROFINET I/O controller
● The maximum transmission rate is 100 Mbit/s
service
- Number of I/O devices that can be connected. Maximum value: 8
-- Update time 4 ms; The update time minimum also depends on the communication components set for PROFINET IO, the number of IO devices, and the amount of user data configured.
Address range
- On the input end, the maximum value is 128 bytes. Each device
- Output end, the maximum value is 128 bytes; Each device
2. Interface
Interface Type RS 485 (Maximum 187.5 Mbps)
Physical interface
● RS 485 is
PROFIBUS DP main station
service
- S7 communication Yes
agreement
The protocols supported by PROFINET IO are; RT controller (FW V2.4 or later) Intelligent device (FW2.5 or later)
PROFIBUS is; Through the CM DP module
Protocol (Ethernet)
● TCP/IP Yes
Communication function/title
S7 communication
● Providing support is
● As a server is
● As a client Yes
Debugging function test
Status/control
● Variable state/control yes
compulsion
○ Mandatory
Integrated function
PID regulator is; PID closed-loop control function: continuous controller output, binary controller output, automatic/manual mode, up to 8 loops
Number of pulse outputs 3
Potential isolation
Digital input potential isolation
● Between channels, group the number of points 1
Digital output potential isolation
● Between channels no
● Between channels, group the number of points 2
EMV
Resistance to static discharge interference
● Resistance to static discharge interference is in accordance with IEC 61000-4-2
-- The test voltage of air discharge is 8 kV
-- Test voltage of contact discharge is 4 kV
Anti-interference ability against high frequency electromagnetic field
● Anti-interference for high frequency rays, in line with IEC 61000-4-3; 10 V/m, 80 to 1000 MHz (in accordance with IEC 61000-4-3); 10 V/m, 900 MHz, 1.89 GHz, 50% ED (in accordance with IEC 61000-4-3)
Resistance to interference in relation to wires
● The anti-jamming ability of the power supply wire conforms to IEC 61000-4-4. 2 kV in accordance with IEC 61000-4-4, pulse
● Anti-interference ability of signal wire, in line with IEC 61000-4-4 is; ±2 kV in accordance with IEC 61000-4-4, pulse
Anti-jamming ability against the amount of wire interference caused by high frequency field
● For high frequency feed anti-interference, in line with IEC 61000-4-6 is; 10 V, 150 kHz to 80 MHz (according to IEC 61000-4-6)
Suppression of radio interference radiation according to EN 55 011
● Limit grade A is suitable for industrial applications; EN 61000-6-4, Emission interference: Applications in industrial applications.
Cable-conducted interference radiation and cable-conducted interference
● Interference emission through power cables/AC cables EN 61000-6-4, Emission interference: for industrial use.
Standards, licenses, certificates
CE mark is
Environmental requirements
In the open
● Maximum drop 0.3m; Five, in the shipping package
Operating ambient temperature
● Minimum value -20 °C
● Maximum 60 °C
● Horizontal installation, minimum value -20 °C
● Horizontal installation, maximum 60 °C
● Vertical installation, minimum value -20 °C
● Vertical installation, maximum 50 °C
Ambient temperature during transportation/storage
● Minimum value -40 °C
● Maximum 70 °C
Air pressure meets IEC 60068-2-13 standard
● Storage/transportation, minimum 660 hPa
● Storage/transportation, maximum 1 080 hPa
Operating height with reference to sea level
● Installation height, minimum value -1 000 m
● Installation height, maximum 2 000 m
Relative air humidity
● No condensation operation at 25 °C, maximum 95%
Project group status/title
Project group status/programming/title
Programming language
- KOP Yes
- FUP Yes
- AWL Yes
dimension
Width 125mm
Height 100 mm
Depth 81 mm
weight
Weight, about 410.3 g
