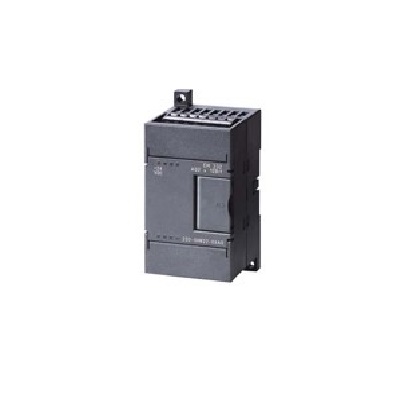

Siemens/ Siemens Module 6ES7232-0HD22-0XA0, SIMATIC S7-200, analog output EM 232, for S7-22X CPU only, 4 analog output, +/-10V DC, 020mA 12/11 Bit converter
Product parameter
Input current
External power supply (DC 24 V), Max. 70 mA
From backplane bus DC 5 V, Max 20 mA
Power loss
Power loss, typical value 2 W
Analog output
Number of analog outputs 4
Output range, voltage
-10 V to +10 V Yes
Output range, current
4 mA to 20 mA Yes
Load resistance (within rated output range)
Minimum value of voltage output 5 kΩ
The maximum value of current output is 0.5 kΩ
The analog value of the output is constructed
Integrate and convert time/resolution per channel
Resolution with overmodulation (bits including symbols), maximum value 12 bits; U/12 bits, I/11 bits
Starting time
For voltage output 100 µs
For current output 2 ms
The range of conversion values that can be displayed
Bipolar signal -32 000 to +32 000
Unipolar signal 0 to 32000
Error/accuracy
Operating error limits throughout the temperature range
Voltage, dependent on output range, (+/-) 2%
Current, dependent on output range, (+/-) 2%
Basic error limit (operating error limit at 25 °C)
Voltage, dependent on output range, (+/-) 0.5%
Current, dependent on output range, (+/-) 0.5%
Potential isolation
Analog output potential isolation
Analog output potential isolation No
This article introduces the Siemens/ Siemens module 6ES7232-0HD22-0XA0 product, if you are interested in Siemens/ Siemens analog module, please contact our staff, we look forward to your call, hope that our technology and service can bring you a better experience
