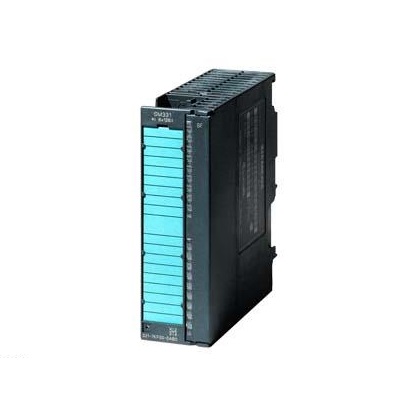

Siemens Module 6ES7331-7PE10-0AB0 250V AC
Technical dataSIMATIC S7-300, analog input SM 331, single channel potential isolated 250V AC, 6 AE thermocouple Type B, E, J, K, L, N, R, S, T voltage: +/-25MV to +/-1V 16-bit, 50ms, 1 40 pinSupply voltageLoad voltage L+● Rating (DC) 24 V● Reverse polarity protection ···
- Contact Us
Contact On WhatsApp
-
010-64225983
+8613811814778
info@zhongpingtech.com
Building 26, Liyuan Community, Chaoyang District, Beijing, China
Technical data
SIMATIC S7-300, analog input SM 331, single channel potential isolated 250V AC, 6 AE thermocouple Type B, E, J, K, L, N, R, S, T voltage: +/-25MV to +/-1V 16-bit, 50ms, 1 40 pin
Supply voltage
Load voltage L+
● Rating (DC) 24 V
● Reverse polarity protection is
Input current
Voltage from load L+ (no load), Max. 150 mA
From the backplane bus DC 5 V, Max 100 mA
Power loss
Power loss, typical value 2.2W
Analog input
The number of analog inputs is 6
Voltage input Allowed input voltage (damage limit), Max. 35 V; 35 V continuous voltage, 75 V within 1 s Max (duty cycle 1:20)
The constant measuring current of the resistance sensor, typically 0.7 mA
Conductor length
● Shielding, maximum 200 m
Input analog value composition
Integration and conversion time/resolution per channel
● Resolution (bits including symbols) with overmodulation, up to 16 bits; Binary complement
● Parameterizable integration time is
● Basic conversion time (ms) 30/50/60/300 ms
● Integration time (ms) 10/16.67/20/100 ms
● For interference frequency f1 (unit Hz), interference voltage suppression 10/50/60/400 Hz
insulation
Insulation test, using DC 2500 V
Connect technology/title
Required front plug 40 pins
dimension
Width 40mm
Height 125 mm
Depth 120 mm
weight
Weight, about 272 g
