Technical data

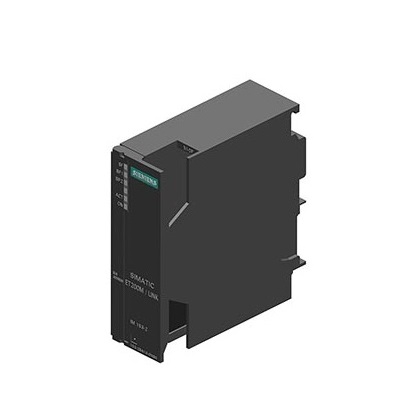

SIPLUS ET 200M IM153-2 (*BA02) Based on 6ES7153-2BA10-0XB0 with anti-corrosion coating, boot under -40 - +70°C, -25°C, Interface ET 200M IM 153-2 High performance model for up to 12 S7-300 modules with redundancy, time imprinting suitable for clock synchronous operation new features: Up to 12 modules can be used by the slave station to actively initiate the expanded selection range for Drive ES (drive engineering software) and Switch ES (switch engineering software) for HART protocol auxiliary variable 64 channel modules running 32 signals/slots
General information
Product type Mark IM 153-2 HF
Firmware version V6.0.0
Manufacturer's mark (VendorID) 801Eh
packaged
● STEP 7 Configurable/integrated, since the version see article ID: 109746275
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 20.4V
The upper limit (DC) is 28.8V
External safety device for power conductor (recommended) 2, 5A
The power supply and voltage break are bonded
● Blackout/blackout crossover time 5 ms
Input current
Consumption current, maximum 650 mA; 24 V DC power supply
On current, typical value 3 A
I squared t 0.1 A squared times s
Output current
Used for the backplane bus (DC 5 V), with A maximum value of 1.5 A
Power loss
Power loss, typical value 5.5 W
Address range
Address capacity
● Input side 244 bytes
● Output 244 bytes
Hardware extension
The maximum number of components per DP slave interface module is 12
Time stamp
Accuracy 1 ms; Up to 8 modules 1 ms; Up to 12 modules at 10 ms
Number of message buffers 15
Message 20 per message buffer
The number of digital inputs that can be labeled, a maximum of 128; Up to 128 signals/stations; Up to 32 signals/slots
Time format RFC 1119
Time resolution 0.466 ns
When there is a message in the message buffer, the interval for sending the message is 1 000 ms
The signal changes when the timestamp rises/falls as the pulse receives or sends the signal
interface
Transmission mode RS 485
The maximum transmission rate is 12 Mbit/s
1. Interface
The automatic calculation of transmission rate is
Physical interface
● Interface output current, maximum 70 mA
● 9-pin Sub-D interface
PROFIBUS DP secondary station
● GSD file SI05801E.GSG
● Automatic baud rate search is
agreement
The bus protocol/transport protocol PROFIBUS DP conforms to EN 50170
Protocol (Ethernet)
● TCP/IP No
PROFIBUS DP
● The maximum number of node addresses ranges from 1 to 125
service
- SYNC capability Yes
- The FREEZE function yes
- Direct data exchange (horizontal connection) Yes; As a publisher with full IO, as a subscriber with only F-IO
Potential isolation
There is potential isolation
insulation
Insulation test, using insulation voltage 500 V
Protection level and protection category
Protection level IP Address IP20
Environmental requirements
Operating ambient temperature
● Minimum value -40 °C; = Tmin; Start @ -25 °C
● Maximum 70 °C; = Tmax
● Minimum for cold start -25 °C
Ambient temperature during transportation/storage
● Minimum value -40 °C
● Maximum 70 °C
Operating height with reference to sea level
● Maximum installation height of 5 000 m above sea level
● Ambient temperature - air pressure - installation height 1140 hPa... 795 hPa (-1000 m ... +2000 m) Tmin... Tmax // Tmin ... 795 hPa ... 658 hPa (+2000 m ... +3500 m) (Tmax-10 K) // Tmin... 658 hPa ... 540 hPa (+3500 m ... +5000 m) (Tmax-20 K)
Relative air humidity
● With condensation, has passed IEC 60068-2-38 test, maximum value 100 %; RH, including condensation/freezing (do not debug in condensation state)
firmness
Industrial equipment used for fixed location
-- tolerance to bioactive substances in accordance with EN 60721-3-3 Yes; Grade 3B2 mold spores, fungal spores, mushroom spores (excluding animal populations), grade 3B3 equipment can be ordered
-- Tolerance to chemically active substances in accordance with EN 60721-3-3 Yes; Grade 3C4 (RH < 75%) including salt spray in accordance with EN 60068-2-52 (clarity 3); *
-- Tolerance to mechanically active substances in accordance with EN 60721-3-3 Yes; Grade 3S4, including sand and dust; *
Used on ships/at sea
-- tolerance to bioactive substances in accordance with EN 60721-3-6 Yes; Grade 6B2 mold spores, fungal spores, mushroom spores (excluding animal populations), grade 6B3 equipment can be ordered
-- Tolerance to chemically active substances in accordance with EN 60721-3-6 Yes; Class 6C3 (RH < 75%) including salt spray in accordance with EN 60068-2-52 (Clarity 3); *
-- Tolerance to mechanically active substances in accordance with EN 60721-3-6 Yes; Grade 6S3, including sand and dust; *
Can be applied to industrial process technology
-- tolerance to chemically active substances in accordance with EN 60654-4 Yes; Class 3 (except trichloroethylene)
- Environmental conditions apply to process systems, measurement systems, and control systems in accordance with ANSI/ISA-71.04 Yes; Group A/B GX grade (except trichloroethylene; The concentration of harmful gases is allowed to reach the limit value of class 3C4 as specified in EN 60721-3-3); Grade LC3 (Salt Spray) and Grade LB3 (Oil)
remarks
-- Instructions for the classification of environmental conditions. When operating in accordance with EN 60721, EN 60654-4 and ANSI/ISA-71.04 *, the accompanying plug cover must be retained on the unoccuated interface!
Project group status/title
Configuration software
● STEP 7 Yes; STEP 7 / COM PROFIBUS/new tools about GSD files
dimension
Width 40mm
Height 125 mm
Depth 117 mm
weight
Weight, about 360 g
