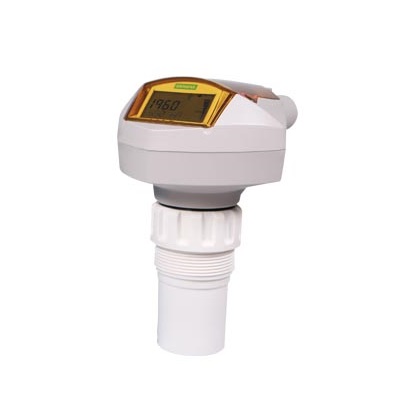

7ML5221(SITRANS Probe LU) Siemens ultrasonic level meter has defined a new precision standard in the field of ultrasonic level measurement with a measurement accuracy of up to 0.15%FS. SITRANS Probe LU 7ML5221 (SITRANS Probe LU) adopts two-wire loop power supply, the meter head and cable inlet can be rotated freely, convenient for wiring and adjustment to achieve the best measurement position. siemens SITRANS Probe LU also uses standard Siemens infrared hand controllers to safely operate in dangerous areas without having to open the cover.
7ML5221 Siemens ultrasonic level gauge technical parameters
Measurement range: 6m 0.25——6m 12m 0.25——12m
Output: 4 to 20mA
Accuracy: ±0.15% of the range or 6mm
Blind area distance: 0.25m repeatability: ≤3mm
Temperature compensation: Built-in temperature compensation
Location: Indoor/outdoor
Ambient temperature: -40——80℃ (-40——176℉)
Protection level: NEMA 4X Type6/ NEMA 6/IP67/IP68
Flange or thread temperature -40——85 ℃
Vessel pressure: normal pressure
Shell material: PBT (plastic) Weight: 2.1kg
Incoming line: 2xM20 cable connector or 1/2" NPT
Sensor material: ETFE or PVDF
Threaded connection: 2" NPT.BSP or G/PF
Flange connection: 3" universal flange
Other connections: FMS200 mounting bracket or user provided mounting bracket
Ambient temperature: -20——40 ° C
Power supply: Standard 24VDC
Certification: General: CSAUS/C, FM, CE
