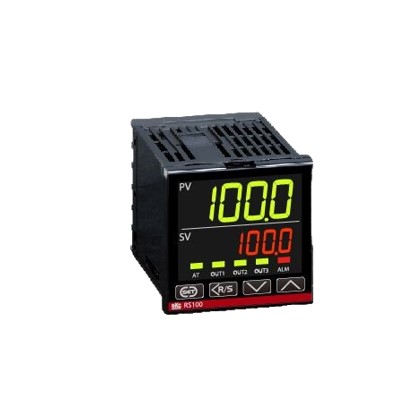

Digital display controller (temperature controller) RS100 series
Universal input
(Optional thermocouple, temperature resistance)
Measurement accuracy: ±0.2% of the display value
Sampling period: 0.25 seconds
Plug-in construction
Main specification
Enter points: 1 point
Input type: ※ Input range Refer to input value range code table (model and price)
1) Group 1: Thermocouple K, J, T, S, B, E, B, N, W5Re/W26Re, PLⅡ, U, L
2) Group 2: Temperature measuring resistance Pt100, JPt100
Sampling period: 0.25 seconds
※ 0.1 seconds when used as 2-loop control or cascade control
Measurement accuracy: ± (0.2%+1digit of the displayed value) ※ Varies according to the input and range
Output (OUT: Max. 3 points) ※ Control · Temperature alarm · Heater disconnection function · Control loop disconnection
1) Relay contact output (A) : RZ400 OUT11a contact ※ Use a high durability relay
2) Relay contact output (B) : FZ100 OUT11a contact
3) Voltage pulse output to drive SSR: DC 0/12V
4) Current output: DC 0 ~ 20mA, DC 4 ~ 20mA
Alarm function (Max. 2 points) : temperature alarm, heater disconnection function, control circuit disconnection alarm light
< Optional Specifications >
Output 2·3 (OUT2·3) ※ Distribution control · Temperature alarm · Heater disconnection function · Control loop disconnection
1) Relay contact output (A) : RZ400 OUT21a contact ※ Use a high durability relay
2) Relay contact output (B) : RZ100 OUT2·3 RZ400 OUT31a contact
3) Voltage pulse output to drive SSR: DC 0/12V
4) Current output: DC 0 ~ 20mA, DC 4 ~ 20mA
Heater disconnection alarm with CT input: Max. 2 points
Communication function: Communication mode RS-485
< general specification >
Power supply voltage (rated) : AC100 ~ 240V
Allowable ambient temperature: -10 ~ +55℃
Weight:
RS100: About 115g
RS400: about 165g
Safety standards:
UL: UL61010-1
cUL: CAN/CSA-22.2 NO.61010-1
CE Mark:
Low Voltage Directive (LVD) EN61010-1
EMC Directive EN61326-1
RCM: EN55011
