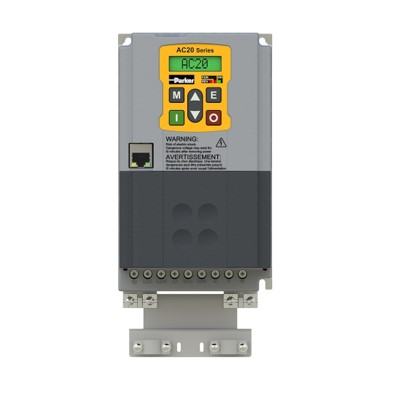

The AC20 general purpose drive provides advanced Ethernet connectivity and Safe Torque Off for open or closed loop AC induction and PM motor control in applications up to 180kW
The AC20 advanced compact drive is a highly featured yet economical solution to general purpose motor control applications in the range 0f 1.5kW to 180kW. AC20 provides open loop speed or torque control for AC induction or PMAC motors, and with optional encoder feedback card fitted, closed loop vector control of AC induction motors.
AC20 is packed with features normally only associated with system drives, including two IO/feedback expansion option slots, Safe Torque Off and an onboard Ethernet port that supports major industrial Ethernet protocols including ProfiNet and Ethernet IP as standard. Further user installable communications option cards are also available.
Output power rating: 1.5
Output current rating: 4.0A
Input voltage: 400/480VAC three-phase input
Brand: Parker
Product type: AC Drive
Drive shaft type: Single Axis Technology
Product sequence: AC20
Input voltage: 3*400/480VAC
Output power: 2 HP, 1.5 kW
Output current rating: 4 A
Compatible feedback devices: Incremental Encoder
Compatible motor type: Induction
PMAC
Control mode: V/Hz
Sensorless Vector
Closed Loop Vector
Communication interface: Ethernet TCPIP
Ethernet IP
Profinet
Profibus (option)
CANopen (option)
EtherCAT (option)
RS485/Modbus (option)
Operating temperature: 0-40°C (derate up to 45°C max) °C, 32-104°F (derate up to 113°F max) °F
Working height: Up to 1000m ASL (derate > 1000m)
Overload rating: 150% for 60s
Compliance with specifications: CE (EMC & LVD)
UKCA
UL Listed
cUL Listed
RoHS Compliance
Overvoltage Category III
Pollution Degree II
