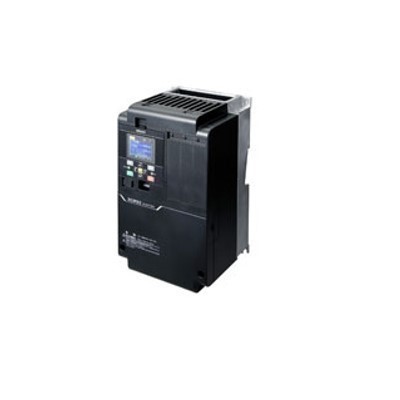

VFD & Power Frequency Converter：OMRON 3G3RX2-A4220

In the realm of industrial automation, inverters play a pivotal role as the core component for motor control. The OMRON 3G3RX2-A4220 inverter stands out with its exceptional performance, making it a preferred choice for a wide range of industrial applications.

Not only does it support both open-loop and closed-loop control, but it also features a Safe Torque Off (STO) function. Moreover, with an integrated EMC filter and a maximum frequency of 590Hz, it meets the higher demands of users.

This article will provide a comprehensive introduction to this high-performance inverter, showcasing how the OMRON 3G3RX2-A4220 delivers efficient, reliable, and safe motor control solutions for modern industry. It will help you gain an in-depth understanding of its outstanding performance in various industrial scenarios.

I. Features and Characteristics

Outstanding Torque Performance:

• High Torque at Low Frequencies: It boasts a high torque at low frequencies, with a starting torque of over 200% at 0.3Hz and 150% at 0Hz. This feature allows motors to easily handle heavy loads during startup and low-speed operation, ensuring stable equipment operation.

Safety Features:

• Safe Torque Off (STO): Equipped with an STO function, ensuring that the equipment can safely stop in emergency situations.

Advanced Control Functions:

• Diverse Drive Control Methods: It offers a variety of control methods, including closed-loop V/F, closed-loop vector, open-loop V/F, and open-loop vector. Under closed-loop vector control, it also integrates servo functions such as position control, origin return, and electronic gear ratio, meeting the demands for high-precision control.

Robust Protection Functions:

• Overcurrent and Overvoltage Suppression: It features overcurrent and overvoltage suppression functions, as well as micro-surge voltage suppression. These functions act as loyal guards, effectively protecting the equipment from abnormal currents and voltage impacts, extending the equipment's service life.

II. Technical Specifications

• Rated Voltage: 400V three-phase

• Rated Power: 22/30kW (HD/ND, the maximum motor output power is 22kW for constant torque and 30kW for variable torque, suitable for motors with different power requirements)

• Rated Current: 48/57A (HD/ND)

• Maximum Frequency: 590Hz

• Control Modes: Open-loop/Closed-loop

• Safety Features: STO (Safe Torque Off)

• Communication Interfaces: RS-485, USB, with optional Modbus/TCP, Profibus DP Slave, Profinet Slave, etc., facilitating interconnectivity with other devices

III. Application Fields

Manufacturing:

• Driving Various Motors: Enhances production efficiency and product quality.

Automated Production Lines:

• Precise Speed and Position Control: Increases the level of automation in production lines.

Food and Beverage Industry:

• Suitable for Packaging and Processing Equipment: Ensures hygienic and efficient production processes.

Logistics and Warehousing:

• Used in Conveyors and Elevators: Improves logistics efficiency.

Energy and Power:

• Used in Power Generation Equipment and Substations: Ensures the stable operation of the power system.

Special Industrial Scenarios:

• Plastic Extruders: Achieves multi-motor speed synchronization control, ensuring the stability of product quality.

IV. Product Advantages

High Performance:

• Supports Frequency Control up to 590Hz: Meets the demands of high-speed applications, ensuring stable operation of motors at high speeds, thereby increasing production efficiency and equipment performance.

High Reliability:

• Built-in EMC Filter: Effectively reduces electromagnetic interference, enhancing system stability and reliability, and reducing the failure rate of equipment due to electromagnetic interference, ensuring the continuity of the production process.

Safety:

• Equipped with STO Function: Ensures that the equipment can quickly and safely stop in emergency situations, protecting personnel and equipment safety, and meeting the strict safety requirements of modern industry.

Flexibility:

• Offers Multiple Communication Interfaces and Options: Such as USB Micro-B, Ethernet, and EtherCAT communication, meeting the diverse needs of users in various industrial environments.

User-Friendliness:

• Equipped with an LCD Operation Panel: Users can conveniently set parameters and monitor in real-time, simplifying the operation process and improving the usability and maintenance efficiency of the equipment.

Environmental and Compatibility:

• Equipped with an EMI Noise Filter: Complies with RoHS standards, leading the trend of health and environmental protection, and can better integrate into various industrial environments, reducing electromagnetic interference to surrounding equipment and ensuring the overall compatibility of the system.

V. Common Questions FAQ

1. How to Achieve High Torque at Low Frequencies?

The 3G3RX2-A4220 inverter uses advanced control algorithms and high-performance power devices to precisely control the motor's current and flux. Its vector control function can adjust parameters in real-time to ensure the precision of low-frequency torque. Additionally, the hardware circuit design is optimized to enhance low-frequency output capabilities.

2. How to Set Parameters?

• Basic Parameter Settings: First, set the basic parameters according to the motor's nameplate and application requirements, such as rated power, voltage, and current.

• Control Method Settings: Then, set the control method, acceleration and deceleration times, V/F curve, etc., based on the control requirements.

• Operation Methods: Parameters can be set through the operation panel or upper-level machine software. The operation panel's buttons and menus are convenient for querying and modifying settings, while the upper-level machine software provides a more intuitive interface and supports centralized management of multiple units.

3. How to Use Communication Interfaces?

• USB Micro-B Interface: Connect the inverter's USB interface to a PC's USB port using a USB Micro-B data cable, and install dedicated software for parameter setting and monitoring.

• Ethernet Interface: Connect the inverter to a network switch using an Ethernet cable and perform parameter setting and monitoring over the network.

• EtherCAT Communication: Connect the inverter to an EtherCAT network to achieve high-speed, real-time communication control.

4. What Are the Energy-Saving Features of This Inverter?

• Automatic Motor Speed Adjustment: In variable load applications such as fans and pumps, it automatically adjusts the motor speed based on load changes.

• Built-in Energy-Saving Functions: Optimize motor operating efficiency, such as automatically adjusting the V/F curve.

• Soft Start and Soft Stop: Reduce current impact and mechanical wear, indirectly saving energy.

5. What Are the Possible Faults and How to Resolve Them?

• Fault Codes Displayed on the Operation Panel: Users can refer to the manual to understand the causes and methods of exclusion.

• Overheat Fault: Check if the heat sink is clean and ensure good heat dissipation; lower the ambient temperature; reduce the load.

• Overcurrent Fault: Check the motor load to ensure it is within the rated range; check for motor short circuits; check the inverter's parameter settings.

• Overvoltage Fault: Check the power voltage to ensure it is within the rated range; consider adding a braking resistor or using a regenerative braking unit.

• Undervoltage Fault: Check the power voltage to ensure it is within the rated range; check the power connections to ensure good contact.

• Communication Fault: Check the communication lines to ensure they are securely connected; check the communication parameter settings to ensure they match the upper-level machine's communication parameters.

• If Unable to Resolve: It is recommended to contact after-sales service or professional maintenance personnel.

6. What Are the Advantages Over Other Brands?

• Superior Performance and Functionality: With low-frequency high torque, closed-loop vector control, and multiple self-learning modes, it offers better control precision and stability.

• Reliable Brand: OMRON is a reliable brand, using high-quality components and strict manufacturing processes to ensure long-term stable operation.

• Comprehensive After-Sales and Technical Support: Providing users with peace of mind.

I hope the above information helps you better understand the performance and applications of the OMRON 3G3RX2-A4220 inverter. If you have more questions, feel free to ask at any time.
