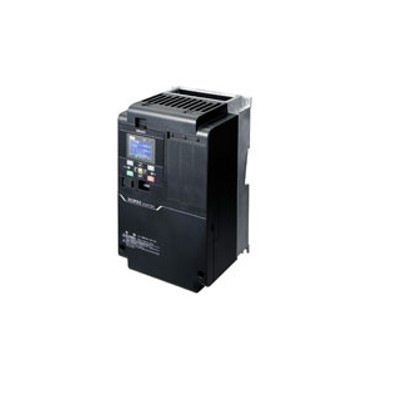

The Omron 3G3RX2-A4055 is a high-performance inverter designed for precise motor control, offering easy setup and energy efficiency in various industrial applications. It is ideal for automation, supporting smooth operation and enhancing productivity.
I. Parameter Configuration
Configure the parameters according to the selected frequency reference method, such as the signal input range and corresponding frequency range.
II. Avoiding Electromagnetic Interference
Built-in Filters
The frequency drive is equipped with built-in EMC filters that comply with electromagnetic compatibility standards.
Wiring Precautions
Avoid running signal and power cables close together to reduce electromagnetic interference.
Use shielded cables for signal lines and ensure the shielding layer is properly grounded.
Grounding Measures
Ensure proper grounding of the device to comply with electrical safety standards.
III. Motor Auto-Tuning
Importance of Motor Auto-Tuning
Motor auto-tuning is crucial for matching the frequency drive with the motor, enhancing control precision and system stability.
Precautions During Auto-Tuning
Ensure the motor is correctly connected to the frequency drive.
The motor should be in a stationary state during auto-tuning.
Effects After Auto-Tuning
After auto-tuning, the frequency drive will automatically adjust control parameters based on the actual motor parameters to achieve optimal performance.
IV. Choosing the Power Range
Select Based on Load Requirements
Choose the power range based on the actual load conditions of the motor. If the load is heavy or requires a high starting torque, select a slightly larger power rating.
Consider Safety Factor
Select a frequency drive with a power rating slightly higher than the motor's rated power to handle load fluctuations.
Overload Capability
The frequency drive has some overload capability, but long-term overload can affect its lifespan and performance.
V. Setting Up the Photomicro Sensor
Application Scenarios
Photomicro Sensors are suitable for applications requiring high-precision detection.
Usage Instructions
Set the detection distance and response frequency parameters according to the actual application requirements.
Precautions
Ensure the sensor is installed in an environment free from strong light interference.
Regularly check the sensor's performance.
VI. Regular Maintenance
Visual Inspection
Regularly check the frequency drive's appearance for any damage or abnormalities, such as cracks in the housing or loose screws.
Cooling System Maintenance
Clean the fans and heat sinks to ensure the cooling system operates efficiently.
Check the fan's operation and replace it if necessary.
Electrical Connection Check
Inspect the power and signal cable connections to ensure they are secure and make good contact.
VII. Installation Considerations
Installation Location
Choose a well-ventilated, dust-free environment for installation.
Installation Orientation
Ensure the frequency drive is installed vertically to facilitate proper heat dissipation.
Power Connection
Ensure the power cable specifications meet the requirements and pay attention to the correct phase sequence.
VIII. Choosing the Control Mode
Select Based on Application Needs
For high-precision speed control applications, choose sensorless vector control mode.
For general constant-speed control applications, choose V/F control mode.
Control Mode Characteristics
Sensorless Vector Control: Offers high precision and is suitable for applications with high control accuracy requirements.
V/F Control: Simple and easy to use.
Parameter Settings
Configure parameters according to the application requirements to achieve the best control effect.
IX. Protection Functions
Overload Protection
The frequency drive automatically reduces frequency or stops running when the load exceeds the rated value.
Overheat Protection
An internal temperature sensor automatically shuts down the frequency drive when the temperature exceeds the set value.
Overvoltage and Undervoltage Protection
The frequency drive automatically shuts down when the supply voltage is abnormal.
X. Troubleshooting Common Issues
Common Fault Codes
Familiarize yourself with the frequency drive's fault codes and their meanings.
Diagnostic Tools
Use diagnostic tools to identify and resolve issues quickly.
Maintenance Records
Keep detailed maintenance records to track the history of issues and resolutions.
Conclusion
The Omron 3G3RX2-A4055, along with the Omron relay, PLC CP1L, and NX ID5442, provides a comprehensive solution for industrial automation. It ensures precise control, reliable operation, and efficient energy management. The Omron Sysmac platform further enhances the integration and management of these components, ensuring seamless operation and efficient control.
