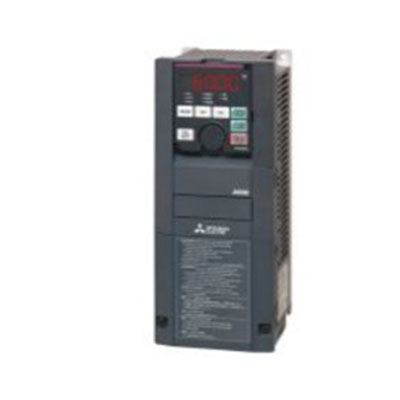

FR-A800 series inverter adopts the independent design of rectifier inverter (315kW and above), and enhances the system security function, plus compatible with a variety of mainstream network communication (CC-1ink, SSCNETIII/H, DeviceNet, PROFIBUS-DP and Ethernet, etc.), Enable you to easily cope with a variety of system solutions, anytime, anywhere control the global. In order to cope with various environmental applications, FR-A800 series frequency converter for circuit board coating treatment, but also with IP55 protection grade series products, can be safely used in a variety of harsh environment. Built-in EMC filter, newly developed driving and power supply technology to greatly reduce electromagnetic interference, let you feel safe to use in any situation.
Applicable motor capacity (kW) **1: SLD 1.5, LD 1.5, ND (initial setting) 0.75, HD 0.4
output
Rated capacity (kVA) **3: SLD 2.9, LD 2.7, ND (initial setting) 1.9, HD 1.1
Rated current (A) : SLD 7.7, LD 7, ND (initial setting) 5, HD 3
Overload current rating **4
SLD: 110%60s, 120%3s (inverse time limit feature) Ambient temperature 40℃
LD: 120%60s, 150% 3s (inverse time limit characteristics) Ambient temperature 40℃
ND (initial setting) : 150% 60s, 200% 3s (inverse time characteristic) ambient temperature 40℃
HD: 200% 60s, 250% 3s (inverse time characteristic) ambient temperature 40℃
Rated voltage ** 5:3 phase 200 -- 240V
Regenerative braking
Brake transistor: Built-in
** High braking torque ** 7:150% torque ·3%ED**6 (150% torque ·10%ED when using FR-ABR option)
Power supply
Rated input AC voltage · Frequency: 3-phase 200 -- 240V 50Hz/60Hz
Allowable fluctuation range of AC voltage: 170 -- 264V 50Hz/60Hz
Allowable frequency fluctuation range: ±5%
Rated input current (A) **8: SLD 8.9, LD 8.3, ND (initial setting) 6.3, HD 3.9
Power device capacity (kVA) **9: SLD 3.4, LD 3.2, ND (initial setting) 2.4, HD 1.5
Other specifications
Protection Structure (IEC 60529) **10: Closed Type (IP20)
Cooling method: self cooling
Approximate weight (kg) : 2.2
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
