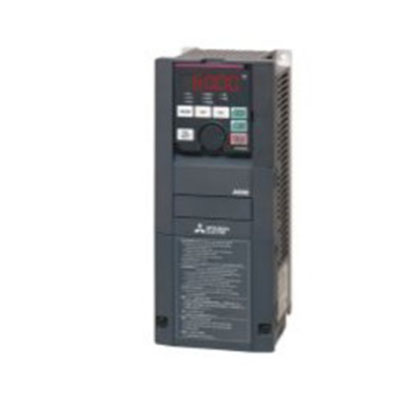

FR-A800 series inverter adopts the independent design of rectifier inverter (315kW and above), and enhances the system security function, plus compatible with a variety of mainstream network communication (CC-1ink, SSCNETIII/H, DeviceNet, PROFIBUS-DP and Ethernet, etc.), Enable you to easily cope with a variety of system solutions, anytime, anywhere control the global. In order to cope with various environmental applications, FR-A800 series frequency converter for circuit board coating treatment, but also with IP55 protection grade series products, can be safely used in a variety of harsh environment. Built-in EMC filter, newly developed driving and power supply technology to greatly reduce electromagnetic interference, let you feel safe to use in any situation.
Applicable motor capacity (kW) **1: SLD 3.7, LD 3.7, ND (initial setting) 2.2, HD 1.5
output
Rated capacity (kVA) **3: SLD 6.3, LD 5.8, ND (initial setting) 4.6, HD 3
Rated current (A) : SLD 8.3, LD 7.6, ND (initial setting) 6, HD 4
Overload current rating **4
SLD: 110%60s, 120%3s (inverse time limit feature) Ambient temperature 40℃
LD: 120%60s, 150% 3s (inverse time limit characteristics) Ambient temperature 50℃
ND (initial setting) : 150% 60s, 200% 3s (inverse time characteristic) ambient temperature 50℃
HD: 200% 60s, 250% 3s (inverse time characteristic) ambient temperature 50℃
Rated voltage ** 5:3 phase 380 -- 500V
Regenerative braking
Brake transistor: Built-in
** High braking torque ** 7:100% torque ·2%ED**6 (100% torque ·10%ED when FR-ABR uses options)
Power supply
Rated input AC voltage · Frequency: 3-phase 380 -- 500V 50Hz/60Hz**11
Allowable fluctuation range of AC voltage: 323 -- 550V 50Hz/60Hz
Allowable frequency fluctuation range: ±5%
Rated input current (A) **8: SLD 10.9, LD 10.1, ND (initial setting) 8.3, HD 6.2
Power device capacity (kVA) **9: SLD 8.3, LD 7.6, ND (initially set) 6.3, HD 4.7
Other specifications
Protection Structure (IEC 60529) **10: Closed Type (IP20)
Cooling mode: forced air cooling and self cooling
The FR-A840-2.2K weighs 3.3kg
