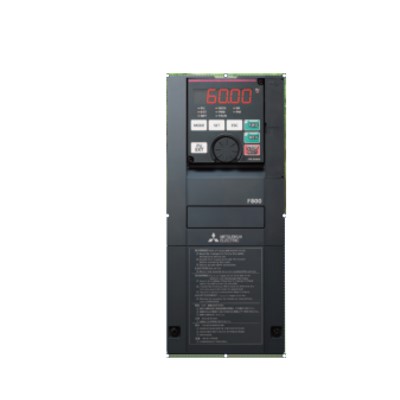

The newly developed magnetic control of the FR-F800 series improves motor efficiency while delivering energy efficient drive and greater starting torque. Through the offline self-adjustment function, not only can drive Mitsubishi's permanent magnet synchronous motor, but other manufacturers' motors can also achieve magnetic control through automatic tuning, thus expanding energy-saving use. The PID multi-loop function enables the FR-F800 to control the motor state not only in the inverter, but also in the control of external machines, thus reducing the system cost. At the same time, through PID pre-charging function, sharp acceleration and deceleration can be avoided.
The FR-F800 series has a simple fault diagnosis function that allows you to store the status of the operation before the protection function is triggered in an external USB flash drive via the trace function, so you can easily perform a simple fault analysis remotely by importing data to the FR ConfigurFtor2. The FR-F800 applies a standard coating to the substrate for a variety of environments. At the same time, the built-in EMC filter will reduce electromagnetic interference, so that you can safely use in any occasion.
[Applicable motor capacity (kW)*1] SLD 37, LD 37
[Output]
· Rated capacity (kVA)*2: SLD 59, LD 53
· Rated current (A) : SLD 77, LD 70
· Overload current rating *3
SLD: 370% 60s, 120% 3s (inverse time characteristic) Ambient temperature 40℃
LD: 120% 60s, 370% 3s (inverse time characteristic) Ambient temperature 50℃
· Rated voltage * 4:3 phase 3800 -- 500V
[Power supply]
· Rated input AC voltage and frequency: 3-phase 3800 -- 500V 50Hz/60Hz
· Allowable fluctuation range of AC voltage: 323 -- 550V 50Hz/60Hz
· Frequency allowed fluctuation range: cycle number ±5%
· Rated input current *5: SLD 97.6A, LD 89.7A
· Power supply capacity *6: SLD 74kVA, LD 68kVA
[Other specifications]
· Protected structure (IEC 60529)*7: Open (IP00)
· Cooling method: forced air cooling
· The FR-F840-37K weighs 23kg
