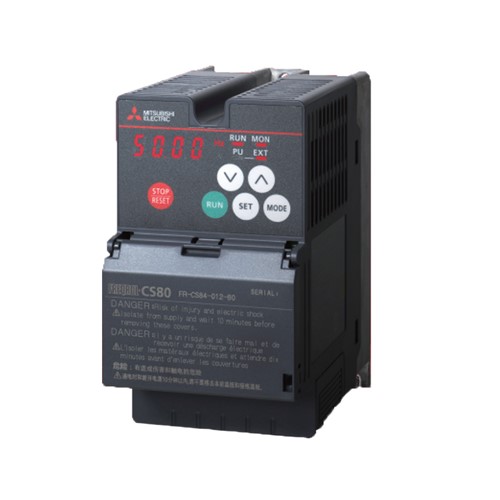

The Mitsubishi Electric Inverter FR-CS84-036-60(1.5K) is a compact inverter from the FR-CS80 series. This Mitsubishi Electric Inverter features high-performance universal flux vector control.This Mitsubishi Electric AC inverter is known for its reliability and efficiency, making it a popular choice in industrial applications. The Mitsubishi System ensures seamless integration and compatibility with various industrial setups, enhancing overall operational efficiency. With a rated power of 1.5kW, it is suitable for a three-phase power supply environment of 380-480V, specifically designed for driving medium and small power motors. It is widely used in equipment that requires high starting torque, such as conveyor belts, cranes, elevators, washing machines, and mixers.
Product Specifications
Rated Power: 1.5kW
Rated Current: 3.6A
Supply Voltage: Three-phase 380-480V, with an allowable voltage range of 325-528V
Output Frequency Range: 0.2-400Hz
Control Methods: Universal flux vector control, V/F control
Protection Level: IP20
Cooling Method: Natural cooling
Dimensions and Weight: Dimensions are 108×128×130mm, and the weight is 0.9kg
Communication Interface: Supports RS-485 communication with built-in Modbus-RTU protocol
Product Features
High-Performance Control: The Mitsubishi Electric Inverter is equipped with universal flux vector control, capable of achieving 150% torque output at 1Hz, making it suitable for applications requiring high starting torque.
Auto-Tuning Function: Unique "no-rotation" auto-tuning function that automatically calculates motor constants to optimize control performance.
Compact Design: Small size allows for side-by-side installation, saving space.
Rich Functionality: Supports multi-speed control, PID control, automatic restart, and fault logging.
High Reliability: Features multiple protection functions such as overload, overheat, overvoltage, and undervoltage protection to ensure safe operation.
The Mitsubishi Electric AC inverter is designed to provide robust performance in various industrial settings, ensuring smooth operation and high efficiency. Its advanced control system and compact design make it an ideal solution for modern industrial automation needs. The Mitsubishi System is engineered to deliver seamless integration with existing infrastructure, ensuring optimal performance and ease of use.
Application Scenarios
The Mitsubishi Electric Inverter FR-CS84-036-60(1.5K) is suitable for a variety of industrial automation scenarios, including:
Conveyor Belts and Lifting Equipment: Provides high starting torque to ensure smooth operation.
Elevators and Hoists: Achieves precise speed control and rapid response.
Washing Machines and Mixers: Meets the demands of high-load startup.
HVAC and Pump Control: Adjusts speed to achieve energy savings.
The Mitsubishi Electric Inverter is widely used in industries such as manufacturing, logistics, and building automation, where reliable and efficient motor control is essential. The Mitsubishi System ensures that these applications run smoothly, providing consistent performance and reliability.
Instructions for Use
Installation and Wiring:
Ensure the installation environment is well-ventilated, avoiding high temperatures, humidity, and strong electromagnetic interference.
Follow the manual strictly when wiring to ensure correct connections for power, signal, and motor cables.
Ground the equipment properly to comply with electrical safety standards.
Parameter Settings:
Set motor parameters, control methods, and frequency ranges according to actual needs.
Frequency can be set via the panel or external signals.
Maintenance and Inspection:
Regularly clean the heat sink and fans to ensure the cooling system operates normally.
Check electrical connections for solidity and verify parameter settings as needed.
Precautions
Environmental Conditions:
Avoid using in environments with high temperatures, humidity, or strong electromagnetic interference.
Power Requirements:
Ensure stable supply voltage to prevent damage from voltage fluctuations.
Safety Operations:
Avoid contact with live parts during operation. Disconnect power before maintenance.
FAQs and Answers
How to Perform Motor Self-Tuning?
Importance: Motor self-tuning is a crucial step to ensure compatibility between the Mitsubishi Electric Inverter and the motor, enhancing control accuracy and system stability. Users need to set relevant data based on the motor nameplate parameters.
Precautions: During self-tuning, ensure the motor and inverter are correctly connected, and the motor is stationary to avoid damage.
Effect: After self-tuning, the Mitsubishi Electric Inverter will automatically optimize control based on motor parameters, achieving high-precision operation. The Mitsubishi System ensures that this process is seamless and efficient.
How to Configure the Communication Interface of Mitsubishi Electric Inverter FR-CS84-036-60(1.5K)?
Interface Type: Supports RS-485 communication with built-in Modbus-RTU protocol.
Connection Requirements: Use shielded cables for communication lines and ensure proper grounding of the shielding layer.
Parameter Settings: Set communication address, baud rate, and other parameters according to protocol requirements to match the host computer.
How to Select the Power Range?
Based on Load Requirements: Choose a power range that matches the actual load. For heavy loads, consider selecting an inverter with a slightly higher power rating.
Safety Factor: It is recommended to choose an inverter with a power rating slightly higher than the motor's rated power to handle unexpected situations.
Overload Capability: The Mitsubishi Electric Inverter has some overload capacity, but long-term overload can affect its lifespan. The Mitsubishi System provides guidelines to help users select the right power range for their needs.
What is the Cooling Method?
Cooling Method: Natural cooling.
Installation Requirements: Ensure good ventilation around the installation area and avoid enclosed environments.
Maintenance: Regularly clean the heat sink to ensure the cooling system operates normally. The Mitsubishi System is designed to operate efficiently even in challenging environments, provided proper maintenance is performed.
How to Avoid Electromagnetic Interference?
Built-in Filters: The Mitsubishi Electric AC inverter meets electromagnetic compatibility standards and can effectively suppress interference.
Wiring Precautions: Avoid placing signal cables close to power cables, use shielded cables, and ground them properly.
Grounding Measures: The Mitsubishi System includes features to minimize electromagnetic interference, ensuring reliable operation.Ensure proper grounding of the equipment to comply with electrical safety standards.
What Protection Functions Does Mitsubishi Electric Inverter FR-CS84-036-60(1.5K) Offer?
Overload Protection: The inverter will automatically reduce frequency or shut down when the load exceeds the rated value.
Overheat Protection: Internal temperature sensors prevent damage from overheating.
Overvoltage and Undervoltage Protection: The Mitsubishi System ensures that all protection functions work together to safeguard the equipment and extend its lifespan. The inverter will shut down automatically when the supply voltage is abnormal.
How to Perform Regular Maintenance on the Mitsubishi Electric Inverter?
Visual Inspection: Check for any damage or abnormalities on the enclosure.
Cooling System Maintenance: Clean fans and heat sinks to ensure proper cooling.
Electrical Connection Check: Verify that power and signal cables are securely connected.
What Precautions Should Be Taken When Installing the Mitsubishi Electric Inverter?
Installation Location: Choose a well-ventilated environment free from dust and corrosive gases.
Installation Method: Install vertically for better cooling and to avoid vibration.
Power Connection: Ensure power cables meet specifications and are properly grounded. The Mitsubishi System includes detailed installation guidelines to ensure optimal performance and safety.
How to Choose the Control Mode?
Based on Application Needs: Select vector control mode for high-precision speed control and V/F control for constant speed control.
Mode Characteristics: Vector control offers high precision, while V/F control is simple and easy to use.
Parameter Settings: The Mitsubishi System provides flexibility in control modes to meet diverse application requirements. Configure parameters according to the selected mode.
How to Set the Frequency Setting Channel?
Setting Methods: Frequency can be set via the panel, external analog signals, or digital signals.
Signal Source Requirements: Ensure the signal source is stable and resistant to interference.
Parameter Configuration: Set the signal input range and frequency range according to the selected setting method.
