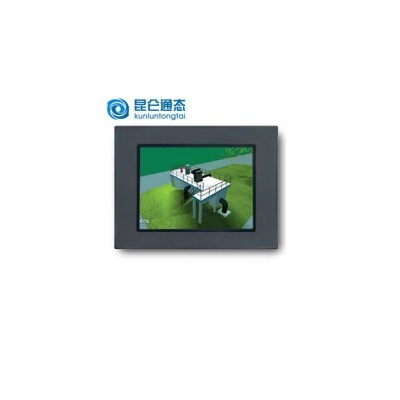

Kunlun State /MCGS embedded integrated touch screen TPC1561HiTPC1561Hi, is a set of Cortex-A8 CPU as the core (main frequency 1GHz) of high-performance embedded integrated touch screen. The product design uses a 15-inch high brightness TFT LCD display (resolution 1024×768), a four-wire resistive touch screen (resolution 4096×4096), and a beautiful and strong aluminum alloy structure with good electromagnetic shielding. At the same time, MCGS embedded configuration software (running version) is pre-installed, with powerful image display and data processing functions.
Product specification
LCD 15"TFT LCD display, true color (LED backlight), resolution (1024*768)
Display color 65535 colors
Backlight life of 50,000 hours
Touch screen four-wire resistive
Power supply DC24V/20W
CPU Mainboard ARM architecture embedded low-power CPU as the core, the main frequency of 600MHz
Memory 128M (built-in 4G SD card)
Storage device 128 MB NAND Flash
Ferroelectric storage 16KB
SD card storage built-in 4G
Product specification
Structure Aluminum alloy structure
Color Dark grey
Panel size 420×310mm
The cabinet holes are 384 mm x 284mm
Net weight 2.2kg
External interface
Serial port 1 x RS232, 1 x RS232/485, 1 x RS232, 1 x RS485
USB 2 master
Ethernet RJ45 Ethernet port
Environmental condition
Operating temperature 0℃ -- 50℃
Working humidity 5% -- 90%
Storage temperature -10℃ - 60℃
Vibration frequency 10-57Hz 57-150Hz
Vibration acceleration 0.075mm 9.8m /s2
Vibration sweep rate Oct/min ≤1
Certified protection
Certified CE/FCC
Protection Class IP65 (Front panel)
Anti-interference industrial level 3
software
Configuration Software MCGS Embedded Configuration Software 7.5 (Running version)
