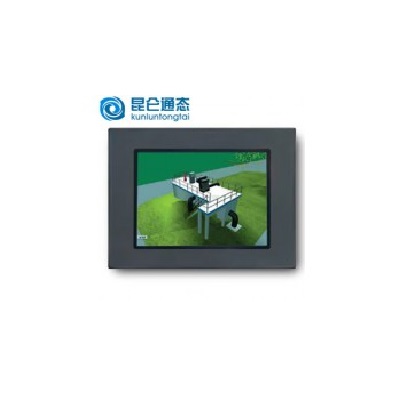

MCGS Touch screen TPC1162Hi is a set of embedded high performance integrated industrial computer with embedded low power CPU as the core (main frequency 600MHz). The product is designed with 10.4 inch high brightness TFT LCD screen (800*600 resolution) and four-wire resistive touch screen (1024*1024 resolution).
Product specification
LCD 10.4"TFT LCD display, True color (LED backlight), resolution (800×600)
Display color 65535 colors
Backlight life of 50,000 hours
Touch screen four wire resistance type
Power supply DC24V/11W
CPU Motherboard ARM structure embedded low-power CPU as the core, main frequency 600MHz
Memory 128M
Storage device 128 MB NAND Flash
Ferroelectric storage 16KB
SD card storage built-in 4G
Structural industrial plastic molds
Color industrial grey
Panel size 315mm*239mm
Cabinet openings are 303mm x 226mm
The net weight is 2.2kg
External interface
Serial ports 1 x RS232, 1 x RS232/485, 1 x RS232, 1 x RS485
USB 2 master
Ethernet RJ45 Indicates an Ethernet port
Environmental conditions
Operating temperature 0℃ -- 50℃
Operating humidity 5% -- 90%
Storage temperature -10℃ - 60℃
Vibration frequency 10-57Hz 57-150Hz
Vibration acceleration 0.075mm 9.8m /s2
Vibration sweep rate Oct/min ≤1
Authentication protection
Certification CE/FCC
Protection Class IP65 (Front panel)
Anti-interference industrial Level 3
software
Configuration Software MCGS Embedded Version Configuration Software 7.5 (Running version)
