Technical data

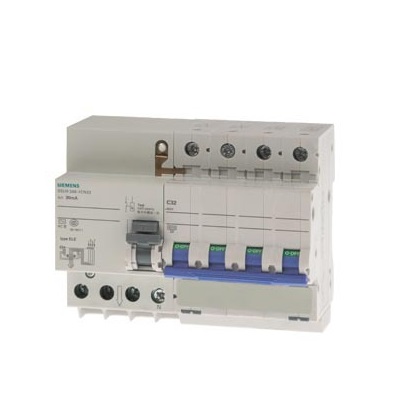

LS/DI switch, Icn: 6 kA, 4P, Model AC, 30 mA, C characteristics, inside: 20 A, Un AC: 230 V
Product brand name SENTRON
Product Name Circuit breaker /DIAZED Protection switch
Product specifications are not delayed
General technical data
Pole number 4
Pole number with safety device 4
Electrode size 4P
Trip feature Level C
Mechanical service life (conversion cycle) is typical 10 000
Overpressure Class III
Pollution level 2
voltage
Voltage Type Operating voltage AC
Insulation voltage (Ui) measured 440 V
The impulse voltage resistance is measured at 4 000 V
Pulse current stability (8/20) µs at 1 kA
Supply voltage
Supply voltage
● AC measured value 400 V
● Minimum value of 125 V for measurement and control equipment
Operating frequency 50/60 Hz
The supply voltage frequency is measured at 50 Hz
Protection class
Protection level IP IP20, with connection wire when installing distributor
Exchange capacity
Short-circuit current (Icn) breaking ability conforms to EN 61009-1 measured 6 kA
Current breaking capacity
● 6 kA according to EN 60898
● 6 kA according to IEC 60947-2
The fault breaking capacity (IΔm) conforms to EC 61009-1 3 kA
Energy restriction Level 3
dissipation
Loss power [W]
● Each electrode is 0.75W in hot running state when AC is used for current measurement
● Maximum value 2.3W
Electric power
Trip fault current measured 30 mA
Working current
● 20 A at 30 °C
● 18.6A at 40 °C
● At 45 ℃, the measured value is 17.6A
● 17.2A at 50°C
● At 55 ℃, the measured value is 16.6A
● AC measured value 20 A
Fault current type AC
Product details
Product characteristics
● Halogen-free is
● Silicon-free Yes
connection
Connected wire section of a single core wire
● Minimum 0.75mm ²
● Maximum 35 mm²
Multicore wire with jointable traverse section
● Minimum 0.75mm ²
● Maximum 35 mm²
Jointable wire section fine core wire with cable end machining
● Minimum 0.75mm ²
● Maximum value: 25 mm²
Tighten the torque bolt connection
● Minimum value 2.5N ·m
● Maximum value 3 N·m
Location The power cable can be top or bottom
Mechanical design
Height 90 mm
Width 126mm
Depth 77 mm
The installation depth is 70 mm
The number of width-allocated cells 7
Load at any location
Net weight: 500 g
Weight including package 530 g
Environmental conditions
Ambient temperature affects humidity up to 95%
Ambient temperature During operation
● Minimum value -25 °C
● Maximum 45 °C
Ambient temperature Storage period
● Minimum value -40 °C
● Maximum 75 °C
Number of test cycles applicable to environmental testing according to IEC 60068-2-30 28
