Technical data

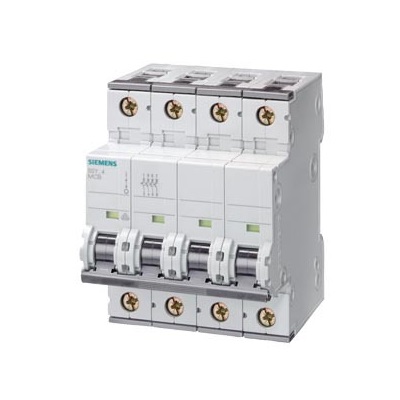

Mini Circuit Breaker 400V 6kA, 4 pole, C, 63A
Product brand name SENTRON
Product name Circuit breaker
General technical data
Pole number 4
Electrode size 4P
Trip feature Level C
Mechanical service life (conversion cycle) is typical 10 000
Overpressure Class III
Pollution level 3
voltage
Voltage Type Operating voltage AC
Insulation voltage (Ui)
● The measured value of AC in single-phase operation is 440 V
● Multi-phase operation when AC measured value 440 V
Supply voltage
Supply voltage
● AC measured value 400 V
Range supply voltage frequency 50/60 Hz
When the working voltage is DC, the maximum measured value is 72 V
Protection class
Protection level IP IP20, with connection conductor
Exchange capacity
Current breaking capacity
● 6 kA according to EN 60898
Energy restriction Level 3
dissipation
The loss of power [W] current measurement value is 4.8W per electrode in the hot running state of AC
Electric power
Working current
● 63 A at 35 °C
● 60.04 A at 40 °C
● The measured value is 58.46A at 45 ℃
● The measured value at 50°C is 56.89A
● 55.25A at 55 ℃
● The measured value is 63 A at AC
Suitability for use in machinery manufacturing/industry
Product details
Product component
● The upper combination terminal is
● Lower combination terminal is
● Can be cut off together the neutral line
Product characteristics
● Comply with EN 60204-1 main switch characteristics no
● Halogen-free is
● It can be sealed
● Silicon-free Yes
The product extension can be installed with auxiliary devices
Short circuit
Short-circuit current (Icn) breaking capacity
● 5 kA per UL 1077 and CSA C22.2 235 for AC
connection
Connected wire section of a single core wire
● Minimum 0.75mm ²
● Maximum 35 mm²
Multicore wire with jointable traverse section
● Minimum 0.75mm ²
● Maximum 35 mm²
Jointable wire section fine core wire with cable end machining
● Minimum 0.75mm ²
● Maximum value: 25 mm²
Tighten the torque [lbf·in] bolt connection
● Minimum 22 lbf·in
● Maximum 31 lbf·in
Tighten the torque bolt connection
● Minimum value 2.5N ·m
● Maximum value 3.5N ·m
Position Any power cable
Mechanical design
Height 90 mm
Width 72mm
Depth 76 mm
The installation depth is 70 mm
The number of width-allocated cells 4
Fastening Type Quick fastening system
Load at any location
Net weight 560 g
Environmental conditions
Ambient temperatures affect a maximum of 95% to 55°C, 55% to 70°C, and 35% to 75°C
Seismic strength in accordance with IEC 60068-2-6 5 to 25Hz ±1mm; 25Hz to 150Hz 50m/s²
Ambient temperature During operation
● Minimum value -25 °C
● Maximum 55 °C
Ambient temperature Storage period
● Minimum value -40 °C
● Maximum 75 °C
Number of test cycles applicable to environmental testing according to IEC 60068-2-30 28
