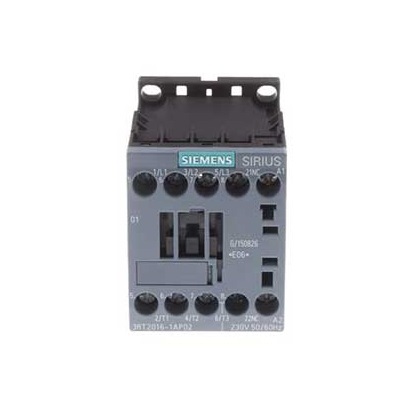

Siemens contactor, 3RT2 series, 230V AC coil, 9A, 3, ** low operating temperature -25°C Sirius Innovation
Model feature introduction
Contactor - 3RT2 series
3RT2 contactor Weather resistant, tested for global use, S00 to S2 specifications, up to 37kW
Specification S00, up to 7.5kW specification S0, up to 18.5kW specification S2, up to 37kW screw connection/spring clamp resistance pulse voltage 6kV insulation voltage 690V Actual power loss only 4W Mark K in line with DIN40719 (can be extended to IEC204-2) and IEC750; Q conforms to DinEN 61346-2
Screw terminal can only be used with screw terminal overload and spring terminal can only be used with spring terminal overload.
Approved CE, UL, CSA, CCC
SiemensSirius series contactor and control relay
Siemens control unit for power supply up to 5.5kW. The complementary nature of the equipment allows for quick and easy assembly such as engines and commutators. The perfect match between contactors, overloads, circuit breakers and accessories of the same power rating provides a uniform panel appearance, standard width, and space savings when installed side by side without lowering ratings.
Model parameter introduction
Attribute value
Scope SIRIUSInnovation
Series 3RT2
Pole number 3
Coil voltage 230V AC
Contact rated current 9A
The rated contact voltage is 400V AC
Normal Configuration 3 On
Number of auxiliary contacts 1
Rated power 4kW
End type screw
The length is 57.5mm
Width 45mm
Depth 73mm
** Low operating temperature -25°C
** High operating temperature +60°C
