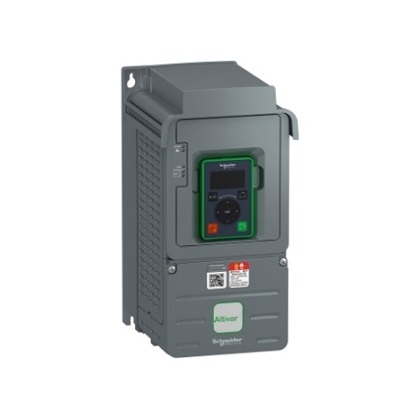

Introduction: ATV610 inverter is suitable for 380 -- 415V three-phase asynchronous motors with power range of 0.75 to 160kW. Can be widely used in standard load control system. Comply with IEC/EN 61800-3, IEC/EN 61000-4, IEC/EN60721-3, IEC/EN 61800-5-1 and other ** standards.
Product details
Product line Easy Altivar 610
Product type converter
Application field fan, pump, compressor, conveyor belt
Product short name ATV610
Variable standard version
Product application scenario Asynchronous motor
Installation Type Cabinet installation
EMC filters integrated with EN/IEC 61800-3 category C4 and 50 m ** long motor cables
IP protection level IP20
Cooling mode forced ventilation
Power supply frequency 50... 60 Hz +/-5 %
The number of network phases is 3
Rated supply voltage [Us]380... 460 V - 15... 10%
Motor power (kW) 7.5kW Applicable to standard load
5.5kW is suitable for heavy duty
Motor power 10 hp for standard load
7.5 hp is suitable for heavy loads
Line current 14.7 A in... Upper 380 V (standard load)
12.8 A in... Upper 460 V (standard load)
11.3 User A is in... Upper 380 V (heavy load)
10.2 A in... Upper 460 V (heavy load)
The expected line is Isc22 kA
Apparent power 10.2kVA at... Upper 460 V (standard load)
8.1 kVA in... Upper 460 V (heavy load)
Continuous output current 15.8A at... The upper 4 kHz is suitable for standard load
12.7 A is used in... The upper 4 kHz is suitable for heavy loads
** Maximum transient current 17.4A at 60 s (standard load)
19.1A in 60 s (heavy load)
Asynchronous motor control profile Standard constant torque
Optimize the torque mode
Standard variable torque
Output frequency0.0001... 0.5kHz
Rated switching frequency 4 kHz
Switching frequency 2... 12 kHz adjustable
number of preset speedsNumber of preset speeds16
Communication port Protocol Modbus Serial
Port Type 1 RJ45 (in remote graphics terminal) For Modbus serial
Physical port 2-wire RS485 applicable to Modbus serial
Transmit frame RTU for Modbus serial
Transfer rates 4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial
Polarization mode with no impedance is applicable to Modbus serial
Address number 1... 247 for Modbus serial
Access method from (station)
Width 145mm
Height 297 mm
350 mm with EMC board
Depth 203 mm
The net weight is 4.575 kg
Analog input quantity 3
Discrete input quantity 6
Analog quantity output quantity 2
