Introduction: Small and small PLC with powerful functions, program capacity 2K step, pulse capture 4 points (P0 -- P3),50μs, operation mode: run, stop, pause.

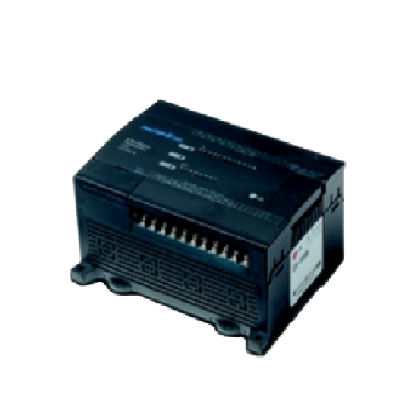

LS Power generation PLC MASTER K Series -K120S Processing speed 0.4μs/step
peculiarity
High speed processing
Superior high-speed counter function (32-bit symbol counter)
Location function (DRT function only)
Product introduction
item
K7M-DR10UR
K7M-DR14UE
K7M-DR20UE
K7M-DR30UE
remark
Operation mode
Cycle operation, cycle operation, interrupt operation, fixed scan
/
I/O control mode
Indirect mode (refresh of program), executed directly by program Settings
/
Programming language
Statement table, ladder diagram
/
Number of instructions
Basic instruction
30
/
Application instruction
365
/
Processing speed (basic instruction)
0.4 mu s/step
/
Program capacity
2K step
/
I/O points (available points installed)
10
14
20
30
/
Data area
P
P000——P63F
/
M
M000——M191F
/
K
K000 -- K31F holding relays
/
L
L000 -- L63F connects to relays
/
F
F000 -- F63F special relay
/
T
100ms:T000 -- T191(192 points)
10ms:T192 -- T250 (59 points)
1ms:T251 -- T255(5 o 'clock)
Time relay (by parameter)
C
C000 -- C255 counters
/
S
S00.00 -- S99.99 (100x100 step) stepping relay
/
D
D000 -- D4999 data area
/
Mode of operation
Run, stop, pause
/
Self-diagnostic function
Cycle error scanning, memory, I/O points and power
/
Data backup mode
Parameter setting
/
** Large expansion quantity
2 (except RTC/ External memory card)
/
Built-in analog timer
Two o 'clock
There is no
/
Input filtering
0,2,5,10,20,50,100,200,500,100 ms is set by the user interrupt
/
interrupt
4 points (P0 -- P3),50μs
/
Pulse capture
4 points (P0 -- P3),50μs
/
Built-in function
Cnet I/F function
Built-in 485 communication
/
Supports the LS dedicated communication protocol
/
Supports Modbus communication protocol
/
Supports user-defined communication protocols
/
Supports protocol-free communication
/
Built-in high-speed counting
1 phase 10KHz channel, 2 phase 5KHz 1 channel
/
Weight (g)
520
540
660
850
