S7-200 SMART Programmable Controller product introduction

SIMATIC S7-200 SMART Simatic S7-200 Smart is a cost-effective small PLC designed by Siemens for Chinese customers. Combined with Siemens SINAMICS driver products and SIMATIC human-machine interface products, S7-200 SMART as the core of small automation solutions will create more value for customers.

Siemens has been committed to the research and development, promotion and application of the latest industrial automation technology, in the past 160 years, for the majority of industrial customers with reliable and efficient automation products, perfect automation solutions, improve the production efficiency of customers, enhance the competitiveness of customers in the market.

Siemens SIMATIC Controller family is a complete product portfolio, including from the most basic intelligent logic controller LOGO! And the S7 series of high-performance programmable controllers, to PC-based automated control systems. No matter how stringent the requirements, it can be flexibly combined, customized, and one by one to meet the specific application needs and budget.

SIMATIC S7-200 SMART is a cost-effective small PLC product tailored for Chinese customers by Siemens after a lot of market research. Combined with Siemens SINAMICS driver products and SIMATIC human-machine interface products, S7-200 SMART as the core of small automation solutions will create more value for Chinese customers.

Product features:

Rich models, more choices

CPU modules with different types and abundant I/O points can meet the control requirements of most small automation devices, with the maximum I/O points reaching 60. In addition, the CPU module is equipped with standard type and economic type for users to choose, for different application needs, the product configuration is more flexible, the maximum control cost.

Optional extension, precise customization

The novel signal board design can expand the communication port, digital channel, analog channel. Without occupying extra space in the electric control cabinet, the expansion of signal board can better fit the actual configuration of users, improve the utilization rate of products, and reduce the expansion cost of users.

High speed chip, excellent performance

Equipped with Siemens special high-speed processor chip, the basic instruction execution time can reach 0.15μs, far ahead in the same level of small PLC. A powerful "core", can let you in dealing with the cumbersome program logic, complex process requirements of the performance of the calm.

Ethernet interconnection, economical and convenient

The Ethernet interface with the standard CPU supports various industrial Ethernet communication protocols such as PROFINET, TCP, UDP, and Modbus TCP, and supports the Web server function. Through this interface can also communicate with other PLC, touch screen, frequency converter, servo driver, host computer, etc. The use of an ordinary network cable can download the program to PLC, eliminating the special programming cable, economic and fast.

Multi-axis operation and control, flexible and free

The CPU module ontology integrates up to 3 high-speed pulse outputs with a frequency of up to 100 KHz, supports PWM/PTO output mode and a variety of motion modes, and easily drives the servo driver.

The PROFINET interface integrated with CPU can connect multiple servo drivers, with convenient and easy to use SINAMICS motion library instruction, quickly realize the device speed control, positioning and other operation control functions.

Universal SD card, remote update

The integrated Micro SD card slot can realize the function of remote maintenance program. Easily update the program, restore factory Settings and upgrade the firmware with the common Micro SD card on the market. Overall improve customer satisfaction, and significantly reduce after-sales costs.

Software friendly, programming efficient

On the basis of inheriting the powerful functions of Siemens programming software, it integrates more humanized design, such as novel banded menu, fully mobile interface window, convenient program annotation function, strong password protection, etc. While experiencing powerful functions, it can greatly improve the development efficiency and shorten the time to market.

Perfect integration, seamless integration

SIMATIC S7-200 SMART Programmable controller, SIMATIC SMART LINE touch screen, SINAMICS V20 inverter and SINAMICS V90 servo drive system perfect integration, bring cost-effective small automation solutions to OEM customers, To meet customers for human-machine interaction, control, driving and other functions of the full range of requirements.

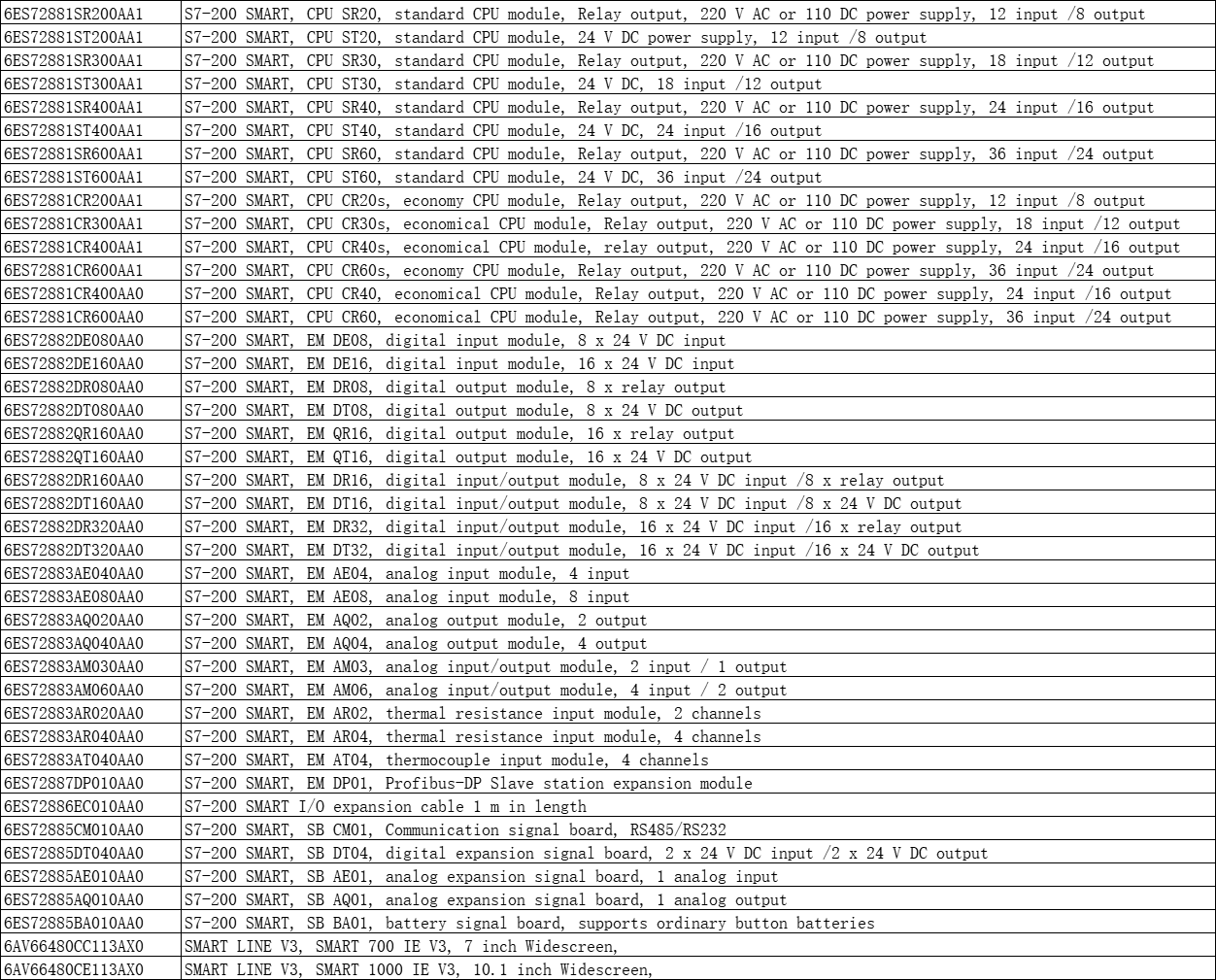

【CPU module 】

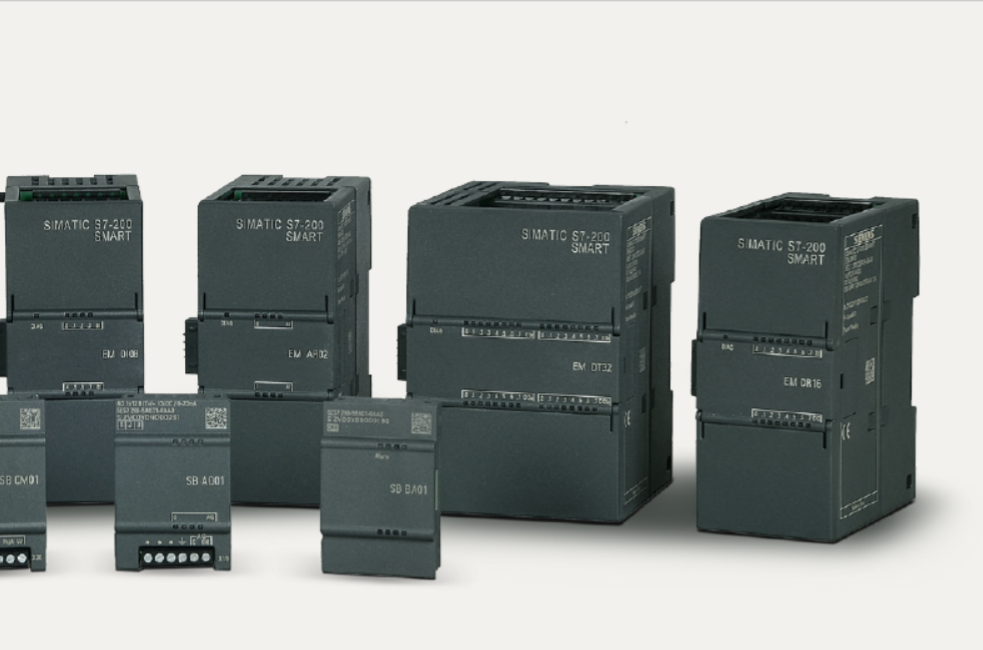

The new S7-200 SMART CPU module can meet the needs of different industries, different customers and different devices. The SR/ST standard CPU can be expanded with six expansion modules and one signal board, which is suitable for applications with a large number of I/O points and complex logic control.

Central processing unit CPU
