Technical data

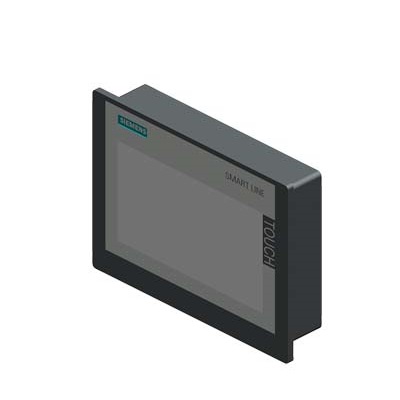

SIMATIC HMI SMART 1000 IE V3, Smart Panel, Touch operation, 10 "widescreen TFT display, 65536 colors, RS-422/485 interface, Ethernet (RJ45) interface, host USB Type A, RTC support, WinCC flexible SMART with CE certificate, the lowest version of project mode; Contains open source software, heating is provided free of charge see accompanying CD
General information
Product Type Mark 1000 IE V3
display
The display size is TFT
The screen is 10.1 in diagonal
The screen width is 222.7mm
The screen height is 125.3 mm
Number of colors 65 536
Resolution (pixel)
● Horizontal image resolution of 1 024 pixels
● Vertical image resolution of 600 pixel
backlight
● MTBF background lighting (at 25 °C) 15 000 h
● Adjustable background lighting No
Operating element
Keyboard font
● Function keys
- The number of function keys is 0
- The number of function keys with LED is 0
● Keys with LED No
● System key No
● Digital keyboard is; On-screen keyboard
● Alphanumeric keyboard is; On-screen keyboard
Touch screen
● Touch screen specifications are
Installation mode/Installation
Can be installed vertically (portrait format) yes
Can be installed horizontally (landscape format) is
The maximum allowable tilt Angle is 35° without external ventilation
Supply voltage
Voltage type of the power supply DC
Rating (DC) 24 V
Allowable range, lower limit (DC) 19.2 V
The upper limit (DC) is 28.8V
Input current
Consumption current (rated) 230 mA
Consumption current, maximum 370 mA
Turn on the current pulse I²t 0.1A ²·s
processor
The processor type is ARM, 600 MHz
memory
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
