Technical data

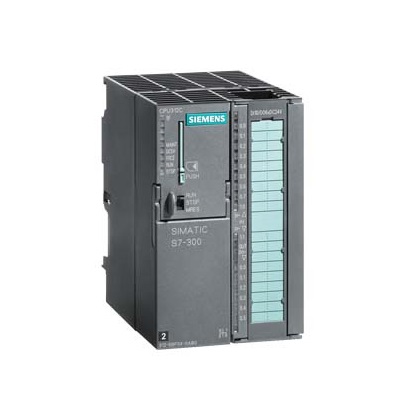

SIMATIC S7-300, FM352-5 with PNP output, high speed Boolean CPU for high speed arithmetic operations, 12 DE, 8 DA, 1 encoder interface for RS-422-increment /SSI encoder
Supply voltage
Load voltage L+
● Rating (DC) 24 V
● Allowable range, lower limit (DC) 20.4V
● Allowable range, upper limit (DC) 28.8V
● Reverse polarity protection is
Input current
From the load voltage 1L+, the maximum 150 mA; The typical value is 60 mA
Voltage from load 2L+ (no load), maximum 200 mA; Typical value 60 mA, DI/DO power supply
Voltage from load 3L+ (with sensor), maximum 600 mA; Typical value 80 mA plus sensor power
Voltage from load 3L+ (no load), maximum 200 mA; The typical value is 80 mA
From the backplane bus DC 5 V, typical value 135 mA
Sensor power supply
5 V sensor power supply
● 5V is
● Short circuit protection is; Electronic overload protection; No protection when accessing normal or counter voltage.
● Output current, maximum 250 mA
24 V sensor power supply
● 24 V is
● Short circuit protection is; Overcurrent and overheating protection in case of overload; Diagnose when the output temperature threshold is reached; No protection when accessing normal or counter voltage
● Output current, maximum 400 mA
Power loss
Power loss, typical value 6.5 W
memory
Memory type RAM
Memory size 128 kbyte; Operation required, MMC
Digital input
Number of digital input terminal 8; Up to 12 sensor inputs are used as digital inputs at 24V DC according to the standard
Input voltage
● Rating (DC) 24 V
● For signal "0" -30 to +5 V
● For signal "1" +11 to +30V
Input current
● For signal "0", maximum (allowed closed circuit current) 1.5mA
● For signal "1", typical value 3.8mA
Input delay (when input voltage is rated)
● Input power (when delay time is 0.1ms), maximum 200 kHz
● Programmable digital filter delay none, 5µs, 10µs, 15µs, 20µs, 50µs, 1.6ms
● Minimum pulse width of program reaction 1 µs, 5 µs, 10 µs, 15 µs, 20 µs, 50 µs, 1,6 ms
For standard input
- When the value ranges from 0 to 1, the maximum value is 3 µs. The typical value is 1.5 μs
Conductor length
● Shielding, maximum 600 m
● Unshielded, maximum 100 m; When the filter delay is less than 1.6 ms, you are advised to use shielded cables
Digital output
Number of output terminals 8
M switch No
P switch is
Short circuit protection is; Overpressure protection, thermal protection
● Response threshold, typical 1.7 to 3.5 A
The limit of induction shutdown voltage is 2M -45 V typical value (-40 V to -55 V); Note: No protection is provided for induction recoil of >55 mJ
Control digit input is
Output on-off capability
● The maximum value of lighting load is 5 W
Output voltage
● Rating (DC) 24 V
● Maximum 28.8V for signal "0"
● For signal "1", the maximum value is 0.5V
Output current
● For signal "1" rating 0.5A; At 60 degrees Celsius
● For signal "1" allowable range 0 to 60 ℃, minimum value 5 mA
● For signal "1" allowable range 0 to 60 ℃, maximum 600 mA
● For the residual current of signal "0", the maximum is 1 mA
The output delay when the resistance is loaded
● From "0" to "1", the maximum value is 1µs; 0.6 µs 50 mA/1.0 µs 0.5 A
● From "1" to "0", maximum 1.5µs; 1.7 µs 50 mA / 1.5 µs 0.5 A
The two outputs are in parallel
● Used to increase power is; 2
Switching frequency
● The maximum value of resistance load is 100 kHz; 20 kHz at 0.5 A; 100 kHz at 0.25A
● The maximum value of inductance load is 2 Hz; 2 Hz for 0.5A with external rectifier diode; 0.5A is 0.5Hz without external rectifier diode
● The maximum value of lighting load is 10 Hz
Conductor length
● Shielding, maximum 600 m
● Unshielded, maximum 100 m
