Technical data

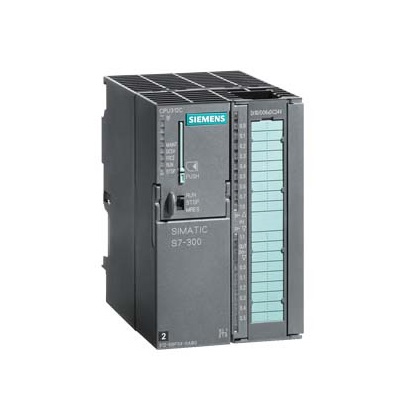

SIMATIC S7-300, CPU 313C-2 PTP Compact CPU with MPI, 16 DE/16 DA, 3 fast counters (30 kHz), integrated interface RS485, integrated power supply 24V DC, working memory 128 KB, Front connector (1x 40 poles) and requires a micro memory card
General information
Hardware function status 01
Firmware version V3.3
packaged
● Engineering system STEP 7 V5.5 or later + SP1 or STEP 7 V5.3 or later + SP2 with HSP 204
Supply voltage
Rating (DC) 24 V
Allowable range, lower limit (DC) 19.2 V
The upper limit (DC) is 28.8V
External safety device for power conductor (recommended) LS switch, type C, minimum 2 A; LS switch, type B, minimum value 4 A
The power supply and voltage break are bonded
● Blackout/blackout crossover time 5 ms
● Repetition rate, minimum value 1 s
Load voltage L+
Digital input terminal
- Rating (DC) 24 V
- Reverse polarity protection Yes
Digital output terminal
- Rating (DC) 24 V
- Reverse polarity protection No
Input current
Consumption current (rated) 580 mA
Consumption current (no load), typical value 110 mA
On current, typical value 5 A
I squared t 0.7A squared times s
Digital input terminal
● From the load voltage L+ (no load), maximum 80 mA
Digital output terminal
● From the load voltage L+, maximum 50 mA
Power loss
Power loss, typical value 9 W
memory
Working memory
● Integrated 128 kbyte
● Expandable No
Loading storage
● Plug-in type (MMC) Yes
● Pluggable (MMC), Max. 8 Mbyte
● Data management on MMC (after last programming), minimum 10 a
buffering
● Existence is; Guarantee via MMC (maintenance free)
● Without batteries is; Program and data
CPU- Processing time
For bit operations, the typical value is 0.07 µs
For word operations, the typical value is 0.15 µs
For fixed-point operations, the typical value is 0.2 µs
For floating-point arithmetic, the typical value is 0.72 µs
dimension
Width 80 mm
Height 125 mm
Depth 130mm
weight
Weight, about 500 g
