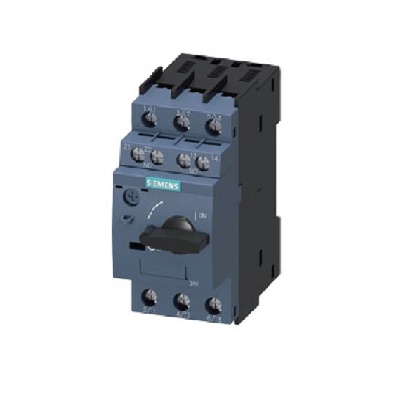

Siemens 3RV series circuit breaker 3RV2411-1GA15
Circuit breaker, Structure size S00 for transformer protection A Trip device 4.5-6.3A N Trip device 130 A bolt-type terminals are connected to standard on-off capability lateral auxiliary switch 1NO+1NC
Circuit breaker structure size S00
Contactor structure size can be combined according to the company's special situation S00, S0
Product expansion auxiliary switch Yes
Loss power [W] current when measuring value
● 7.25W in hot operation when AC
● 2.4W per electrode in hot operation at AC
Insulation voltage contamination degree at 3 hours AC measured value 690 V
Impulse voltage resistance measured value 6 kV
Installation height The height exceeds the maximum level by 2 000 m
Ambient temperature
● During operation -20... +60 °C
● Storage period -50... +80 °C
● Transit period -50... +80 °C
Relative air humidity during operation 10... 95%
Main circuit
The poles are used for main circuit 3
Configurable current action value Current control overload trip 4.5... 6.3A
Operating voltage
● Measured value 20... 690 V
● The maximum measured value at AC-3 is 690 V
● The maximum measured value of AC-3e is 690 V
Operating frequency measurement value 50... 60 Hz
The working current is measured at 6.3A
Working current
● Measured value 6.3A at 400 V AC-3
● Measured value 6.3A at 400 V at AC-3e
