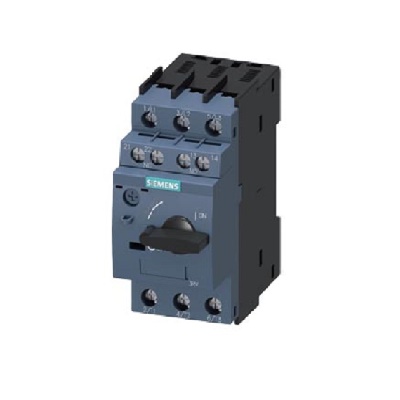

Circuit breakers, Construction size S0 for motor protection, Class 10 A Trip 9-12.5 A N Trip 163 A bolt-type terminal connection standard on-off capability
Integrated technical data
The structural dimension of the circuit breaker is S0
Contactor structure size can be combined according to the company's special conditions S00, S0
Product extension auxiliary switch is
Loss of power [W] current when measuring value
● 9.25W in hot running state when AC
● Each electrode is 3.1W in hot running state when AC
The insulation voltage contamination degree is 690 V measured at 3 hours AC
The impulse voltage resistance is measured at 6 kV
Impact resistance in accordance with IEC 60068-2-27 25g / 11 ms
Mechanical service life (conversion cycle)
● Typical 100000 for main contacts
● Typical 100000 for auxiliary contacts
Electrical service life (operation cycle) is typical 100 000
The ignition protection form complies with ATEX Product Directive 2014/34/EU Ex II (2) GD
Proof of eligibility in accordance with ATEX Products Directive 2014/34/EU DMT 02 ATEX F 001
The reference mark complies with IEC 81346-2:2009Q
RoHS Directive (Date) 10/01/2009
