Technical data

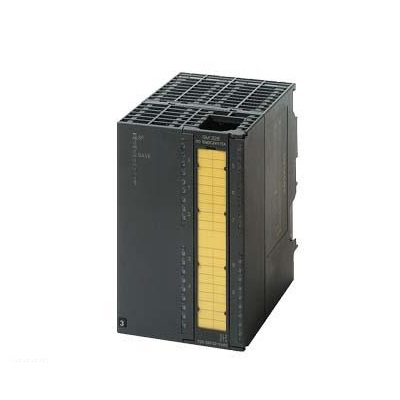

*** Spare parts *** SIMATIC S7, SM 336,6 AE; 14 bits; 40 pin, fail-safe analog input terminal for SIMATIC S7F system with diagnostic alarm
Supply voltage
Rating (DC) 24 V
Reverse polarity protection is
Load voltage L+
● Rating (DC) 24 V
● Reverse polarity protection is
Input current
From the supply voltage L+, normal 160 mA
From the backplane bus DC 5 V, Max 90 mA
Power loss
Power loss, typical value 4.25 W
Analog input
The number of analog inputs is 6
● Voltage measurement 4
Voltage input The allowable input voltage (damage limit), Max. 30 V
Current input Allowed input current (damage limit), Max. 40 mA
Input range
● Voltage is
● Current is
Input range (rating), voltage
● 0 to +10 V is
- Input resistance (0 to 10 V) 59 kΩ
Input range (rating), current
● 0 to 20 mA Yes
- Input resistance (0 to 20 mA) 107 Ω
● 4 mA to 20 mA Yes
- Input resistance (4 mA to 20 mA) 107 Ω
Conductor length
● Shielding, maximum 200 m
Input analog value composition
Integration and conversion time/resolution per channel
● Resolution (bits including symbols) with overmodulation, up to 14 bits
● Integration time (ms) 20 ms (50 Hz); 16.66ms (at 60 Hz)
● For interference frequency f1 (unit Hz) interference voltage suppression 38 dB
sensor
Signal sensor connection
● For the current measurement as a two-wire system transmitter
● For the current measurement as a four-wire system transmitter
Error/accuracy
Operating error limits throughout the temperature range
● Voltage, related to input range, (+/-) 0.48%
● Current, related to the input range, (+/-) 0.48%
Basic error limit (operating error limit at 25 °C)
● Voltage, depending on the input range, (+/-) 0.4 %
● Current, related to the input range, (+/-) 0.4 %
Alarm/diagnosis/status information
The diagnostic function is
alarm
● Diagnostic alarm yes; parameterizable
diagnosis
● Diagnostic information can be read Yes
Diagnostic display LED
● Fail-safe mode is
● Cumulative failure SF (red) is
● Sensor power supply Vs (green) Yes
Potential isolation
Simulated input potential isolation
● Between channels no
● Between the channel and the backplane bus
● Between the channel and the supply voltage of the electronic component is; Only at the external power supply of the sensor
insulation
Insulation test, using 500 V DC/350 V AC
Standards, licenses, certificates
The maximum level of safety that can be achieved in safe operation
● Request level according to DIN V 19250 AK 6
● Comply with EN 954 Class 4 line
● The performance rating conforms to ISO 13849-1 e
● SIL in accordance with IEC 61508 SIL 3
Connect technology/title
Required front plug 40 pins
dimension
Width 80 mm
Height 125 mm
Depth 120 mm
weight
Weight, about 480 g
