Technical data

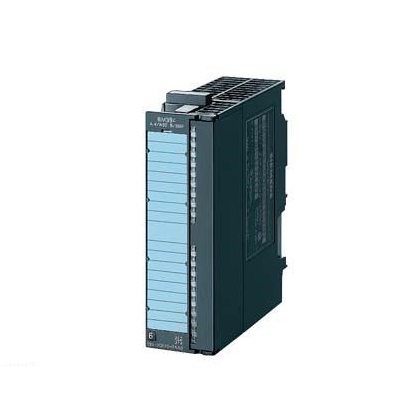

SIMATIC S7-300, Simulation module SM 334, Potential isolation, 4 analog inputs /2 analog outputs, 12-bit, 0-10V, for Pt100 (air conditioning range 120-155 degrees) and 10kOhm measuring range, 1 piece of 20 pins
Supply voltage
Load voltage L+
● Rating (DC) 24 V
● Reverse polarity protection is
Input current
Voltage from supply and load L+ (no load), Max. 80 mA
From the backplane bus DC 5 V, Max 60 mA
Power loss
Power loss, typical value 2 W
Analog input
The number of analog inputs is 4
● Voltage measurement 2
● 4 when measuring resistance
Voltage input Allowed input voltage (damage limit), Max. 20 V; Continuous voltage; 75 V in maximum 1 s (duty cycle 1:20)
Constant measurement current of resistance sensor, typical value 490 µA; At PT100 (490 µA) and at 10 kOhm (105 µa)
Cycle time (for all channels), maximum 85 ms
Input range
● Voltage is
● Current No
● Thermocouple No
● Resistance thermometer Yes
● Resistance is
Input range (rating), voltage
● 0 to +10 V is
- Input resistance (0 to 10 V) 100 kΩ
Input range (rating), resistance thermometer
● Pt 100 Yes; Climate-only range
Input range (rating), resistance
● 0 to 10000 ohms is
Characteristic linearization
● Parameterizable yes
-- Resistance Thermometer Pt100 (climate)
Conductor length
● Shielding, maximum 100 m
Analog output
The number of analog outputs is 2
Voltage output, short circuit protection is
Voltage output, short circuit current, Max. 30 mA
Output range, voltage
● 0 to 10 V is
Load resistance (in rated output range)
● Minimum voltage output value 2.5 kΩ
● Capacitance load at the voltage output, maximum 1 µF
Conductor length
● Shielding, maximum 100 m
Input analog value composition
Integration and conversion time/resolution per channel
● Resolution (bits including symbols) with overmodulation, up to 12 bits
● Parameterizable integration time is
● Integration time (ms) 16, 67/20 ms
● For interference frequency f1 (unit Hz), interference voltage suppression 50/60 Hz
Composition of analog values at the output end
Integration and conversion time/resolution per channel
● Resolution (bits including symbols) with overmodulation, up to 12 bits
● Conversion time (per channel) 500 µs
Starting time
● For resistance load 0.8ms
● For capacitive load 0.8ms
sensor
Signal sensor connection
● For voltage measurement is
● For the use of two wire interface resistance measurement is
● For the use of three wire system interface resistance measurement is
● For the use of four-wire interface resistance measurement is
Error/accuracy
Operating error limits throughout the temperature range
● Voltage, related to the input range, (+/-) 0.7 %; 0 to 10V
● Resistance, depending on the input range, (+/-) 3.5 %; 10 kOhm
● Thermal resistance, depending on the input range, (+/-) 1%
● Voltage, related to output range, (+/-) 1%
Basic error limit (operating error limit at 25 °C)
● Voltage, related to the input range, (+/-) 0.5%; 0 to 10V
● Resistance, related to the input range, (+/-) 2.8 %; 10 kOhm
● Thermal resistance, dependent on input range, (+/-) 0.8%
● Voltage, related to output range, (+/-) 0.85%
Alarm/diagnosis/status information
Alarm no
Diagnostic function No
Potential isolation
Simulated input potential isolation
● Between the channel and the backplane bus
Simulated output potential isolation
● Between channels no
● Between the channel and the backplane bus
● Between the channel and the supply voltage of the electronic component
insulation
Insulation test, using DC 500 V
Connect technology/title
Required front plug 20 pins
dimension
Width 40mm
Height 125 mm
Depth 117 mm
weight
Weight, about 200 g
