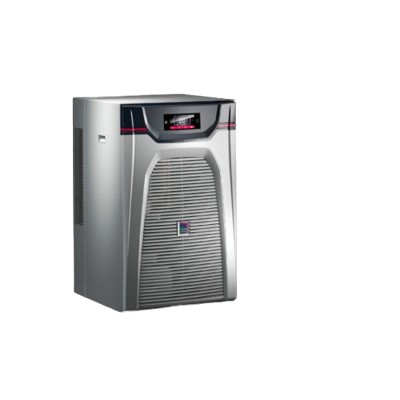

Chiller Blue e+ 1-6 kW
Product Code :SK 3320.200
The Blue e+ Chiller is an efficient, flexible and compact model. They centrally and economically cool cooling water and supply mainly to air/water heat exchangers. Up to 70% of electricity consumption can be saved through speed control components and converter technology. International certification and a wide range of voltage supplies are available worldwide. Intuitive operation with touch display and intelligent communication interface makes operation and analysis simple.
Your benefits:
The Blue e+ chiller uses innovative DC converter technology to centrally and effectively cool the liquid with accurate temperature control.
It can be used worldwide due to its unique multi-voltage capability (no rewiring required) and wide operating limit range
Maximum safety through integrated relief valve and monitoring sensor technology
Intuitive operation via touch screen and intelligent interface
The compact and modular construction ensures minimal seating area
Pump with high efficiency IE3 motor
Color: RAL 7035, weave
Scope of Supply:
Fully connected unit (pluggable terminal block)
Multilingual data
Options:
To facilitate remote monitoring and networking of the cooling unit and Blue e+ cooling unit, use the IoT communication module with product number 3124.300. Remote monitoring of device data, status, and system messages improves machine availability and process security.
Protection class IP, according to EN 60 529:
IP 24
Protection Class IP 54 (Electrical)
Total cooling power Tw10/Tu32:
Cooling power Tw10 Tu32/50 Hz: 1.81kW
Cooling power Tw10 Tu32/60 Hz: 1.71kW
Total cooling power Tw18/Tu32:
Cooling power Tw18 Tu32/50 Hz: 2.61kW
Cooling power Tw18 Tu32/60 Hz: 2.51kW
Total cooling power, according to DIN EN 14511 Tw18 / Tu35:
Cooling power Tw18 Tu35/50 Hz: 2.5kW
Cooling power Tw18 Tu35/60 Hz: 2.4kW
Air flow (free air supply) :
Gas flow at 50 Hz: 1,100 m³/h
Gas flow at 60 Hz: 1,100 m³/h
Rated operating voltage:
380 V - 415 V, 3~, 50 Hz
440 V - 480 V, 3~, 60 Hz
Size:
Width: 450 mm
Height: 820 mm
Depth: 710 mm
Description: Once the software is downloaded, the user enters into an agreement with Vito to use the software free of charge under the terms of the license.
Temperature regulator: e+ controller (factory setting +20 °C)
Operating temperature range: -5 °C... 50 °C
Storage temperature range: -40 °C... 70 °C
Cooling medium operating temperature range: 5 °C... 35 °C
Lag temperature difference: ± 0.5K
Refrigerant/cooling medium:
Refrigerant: R134a
Quantity: 0.46kg
Global Warming Potential (GWP): 1,430
CO₂ equivalent (CO₂e): 0.66 t
Pump pressure: Under 50 Hz condition: 2.4 bar
Volume flow (cooling medium) :
At 50 Hz: 7 l/min
At 60 Hz: 25 l/min
Rated power Pel:
At 50 Hz: 1.38 kW
At 60 Hz: 1.57kW
Maximum rated current:
At 50 Hz: 2.17A
At 60 Hz: 1.95A
Front fuse: Automatic fuse/fuse: 15 A
Energy efficiency ratio (EER) 50 Hz Tw18/Tu35 DIN EN 14511:2.41
Water loop: Seal open
Water inlet: ¾" IG
Number of refrigeration cycles: 1
Water Tank:
Material: PE plastic
Capacity: 12 l
Packing unit: 1 piece
Weight/Packing: 84 kg
Tax number: 84186900
EAN: 4028177809833
ETIM 7.0: EC002516
ECLASS 8.0:27180713
Product Description: SK Chiller Blue e+, 2.1kW, 380-415 V, 440-480 V, 3~, 50/60 Hz, WHD: 450 x 820 x 710 mm
