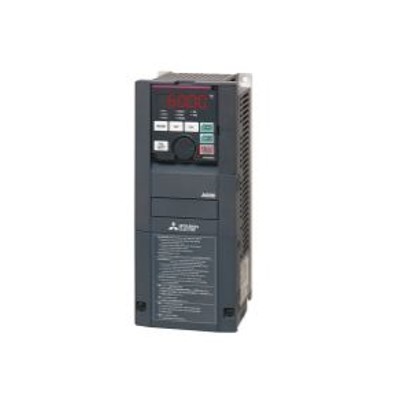

FR-A800 series inverter adopts rectifier inverter independent design (315kW and above), and enhances the system security function, plus compatible with a variety of mainstream network communication (CC-1ink, SSCNETIII/H, DeviceNet, PROFIBUS-DP and Ethernet, etc.). Make it easy for you to deal with a variety of system solutions and control the whole situation anytime, anywhere. In order to cope with various environmental applications, FR-A800 series inverter coating circuit boards, but also with IP55 protection grade series products, can be safely used in a variety of harsh environments. Built-in EMC filter, newly developed drive and power supply technology greatly reduces electromagnetic interference, so that you can use in any situation with peace of mind.
Product parameter
Applicable motor capacity (kW) **1: SLD 3.7, LD 3.7, ND (initial setting) 2.2, HD 1.5
exportation
Rated capacity (kVA) **3: SLD 6.3, LD 5.8, ND (initial setting) 4.6, HD 3
Rated current (A) : SLD 8.3, LD 7.6, ND (initial setting) 6, HD 4
Overload current rating **4
SLD: 110% 60s, 120% 3s (inverse time characteristic) Ambient temperature 40℃
LD: 120% 60s, 150% 3s (inverse time characteristic) Ambient temperature 50℃
ND (initial setting) : 150% 60s, 200% 3s (inverse time characteristic) ambient temperature 50℃
HD: 200% 60s, 250% 3s (inverse time characteristic) ambient temperature 50℃
Rated voltage ** 5:3 phase 380 -- 500V
Regenerative braking
Brake transistor: built-in
** High brake torque ** 7:100% torque ·2%ED**6 (100% torque ·10%ED when FR-ABR is used)
Power source
Rated input AC voltage and frequency: 3-phase 380 -- 500V 50Hz/60Hz**11
Allowable fluctuation range of AC voltage: 323 -- 550V 50Hz/60Hz
Allowable frequency fluctuation range: ±5%
Rated input current (A) **8: SLD 10.9, LD 10.1, ND (initial setting) 8.3, HD 6.2
Power device capacity (kVA) **9: SLD 8.3, LD 7.6, ND (initial setting) 6.3, HD 4.7
Other specifications
Protection Structure (IEC 60529) **10: Closed type (IP20)
Cooling method: forced air cooling self-cooling
The FR-A840-2.2K weighs 3.3kg
