Product introduction

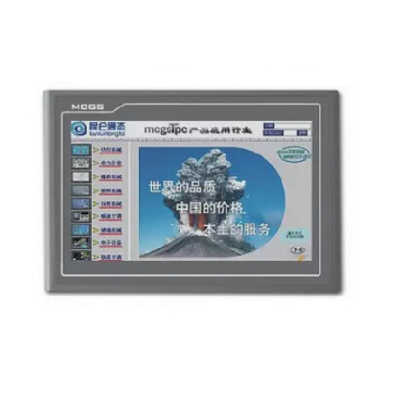

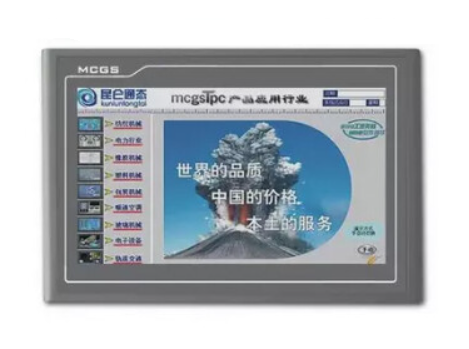

TPC1262Hi is a set of embedded integrated industrial computer with embedded low power CPU (main frequency 600MHz). The product design uses 12.1 inch high brightness TFT LCD display (resolution 800×600), four-wire resistive touch screen (resolution 1024×1024).
LCD screen: 12.1"TFT LCD, true color (LED backlight), resolution (800×600)
Display color: 65535 color
Backlight life: 50,000 hours
Touch screen: four-wire resistive
Power supply: DC24V/17W
CPU motherboard: ARM structure embedded low power CPU is *, the main frequency is 600MHz
Memory: 128 MB
Storage device: 128 MB NAND Flash
Ferroelectric storage: 16KB
SD card storage: built-in 4G
Structure: Aluminum alloy structure
Color: Dark gray
Panel size: 323*246mm
Cabinet openings: 303mm x 226mm
Net weight: 2.2kg
Serial port: 1 x RS232, 1 x RS232/485, 1 x RS232, 1 x RS485
U* : 2 masters
Ethernet: RJ45 Ethernet port
Operating temperature: 0℃ -- 50℃
Working humidity: 5% -- 90%
Storage temperature: -10℃ -- 60℃
Vibration frequency: 10-57Hz 57-150Hz
Vibration acceleration: 0.075mm9.8m /s2
Vibration sweep rate: Oct/min ≤1
* Protection: CE/FCC
* Protection Rating: IP65 (Front panel)
* Interference: Industrial Level 3
Configuration Software: MCGS Embedded Configuration Software 7.5 (running version)
