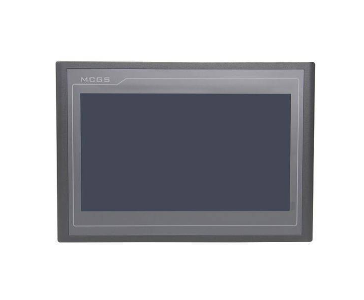

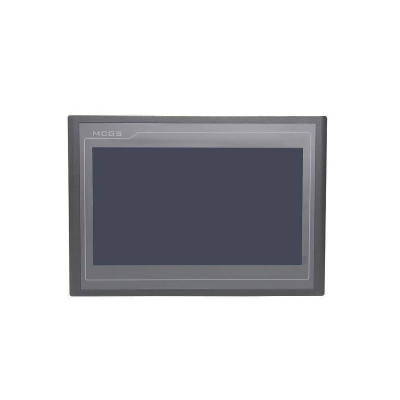

MCGS TPC7062TX(KX) Embedded integrated touch screen is a set of high performance embedded integrated touch screen with embedded low power CPU as the core (main frequency 400MHz). The design features a 7-inch high brightness TFT LCD display (800×480 resolution) and a four-wire resistive touch screen (4096×4096 resolution). At the same time also pre-installed MCGS embedded configuration software (running version), with powerful image display and data processing functions.
Product introduction
Size (in inches) 7
LCD screen TFT LCD display, LED backlight
Display color True color, 65535 colors
Resolution 800×480
LCD screen brightness 200cd/㎡
Touch-screen resistive type
Power supply 24VDC
Rated power 5W
CPU Mainboard ARM CPU, 400MHz
Memory 64M
Storage device 128 MB FLASH
Configuration software MCGS Embedded configuration software (running version)
Environmental conditions
Operating temperature 0℃ -- 45℃
Operating humidity 5% -- 90%
Storage temperature -10℃ - 60℃
Vibration frequency 10-57Hz 57-150Hz
Vibration acceleration 0.075mm 9.8m /s2
Vibration sweep rate Oct/min ≤1
Product specification
Structure industrial plastic structure
Color industrial grey
Panel dimensions 226.5mm x 163mm
Cabinet holes 215mm x 152mm
External interface
Serial ports 1 x RS232, 1 x RS485
USB 1 master 1 slave
Ethernet none
Authentication protection
Certification CE/FCC
Protection level IP65
Anti-interference industrial Level 3
FAQ
1.Who are We?
Beijing Zhongping Technology Co., LTD., is a one-stop integrated service provider of intelligent manufacturing, belongs to the Gong Doctor Group, is a scientific research, design, marketing, technical services, industrial Internet, international import and export services as one of the science and technology companies.
2.What can you buy from us?
PLC, inverter, human-machine interface, hydraulic products, low-voltage power distribution, industrial robots and core components
3.Is the item in stock or need to be purchased from another supplier?
We have a large inventory of goods and have our own warehouse.
4.What advantages do we have over other suppliers?
Our company has a large amount of inventory and a number of warehouses, but also in the country's important industrial provinces and cities with offices and a number of overseas service points. To provide you with intelligent manufacturing one-stop comprehensive services, save efforts, labor and cost.
5.Can you provide 100% new original authentic products?
We only sell new original genuine, no renovation, no fake, only for the original factory original!
6.How long is the delivery time?
If there is a stock, it will take 2-3 working days to ship, if the quantity is large, it will take 5-7 working days after receiving the payment, if it is not a conventional model, it will take some time, we will inform you of the specific delivery time.
7.Is there technical support available?
Of course, we have a professional technical team that can help you solve technical problems.
8.How do we guarantee quality?
We have three processes to control the quality of goods.
1). Our engineers will inspect the production and quality control in the factory regularly.
2) Incoming materials shall be inspected by experienced purchasing engineers before they can be stored.
3). At least 2 people in the logistics department cross-check the goods to be sent before delivery.
9.Can you guarantee the safe and reliable delivery of your products?
Yes, we strictly adopt the international standard packing. We also use special packaging for dangerous goods, and refrigerated shipping for items with temperature requirements. Special item packaging and general cargo standard packaging requirements may incur additional costs.
10.How about the freight?
The cost depends on how you choose to get the goods. Express is usually the fastest but also the most expensive way. Sea freight is the best solution for large quantities of goods. The exact shipping cost depends on the purchase amount、quantity and weight of your order. Please feel free to contact us for more information.
