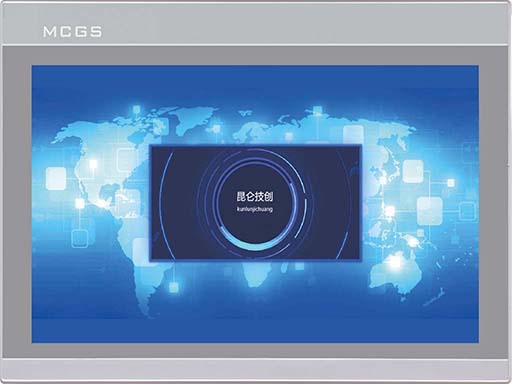

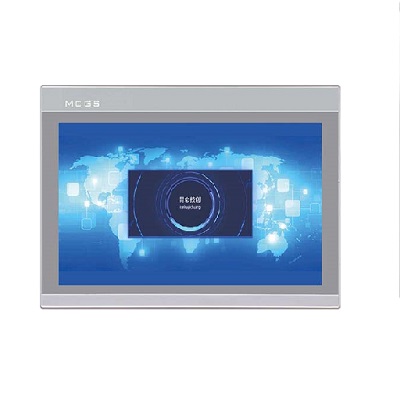

MCGS human-machine interface TPC1431Ni is an intelligent touch screen for the Internet of Things with Cortex-A7 multi-core CPU as the core and 1GHz main frequency. The product is designed with a 14-inch TFT LCD screen with a resolution of 1366*768 and a four-wire resistance touch screen. At the same time, McgsPro configuration software is pre-installed (running version).
parameter
Product characteristics
LCD screen: 14"TFT
Backlight type: LED
Display color: 262K
Resolution: 1366×768
Display brightness: 220cd/m2
Touch screen: four wire resistance type
Input voltage: 24±20%VDC
Rated power: 16w
Processor: Cortex-A7 Multi-core 1GHz
Memory: 128 MB
System storage: 128 MB
Configuration software: McgsPro
Wireless extension
Wi-Fi interface: Wi-Fi IEEE802.11b /g/n
4G port: None
External interface
Serial interface: Mode 1: C0I1(232),C0M2(485),C0M3(485) Mode 2: C0M1(232),C0M9(422)
USB port: 1XHost
Ethernet port: 1 x 10/100M adaptive
Working environment
Operating temperature: 0℃ -- 50℃
Operating humidity: 5%-90% (no condensation)
Storage temperature: -10℃ -- 60℃
Storage humidity: 5% -- 90%(no condensation)
Product specification
Case material: cast aluminum panel
Case color: Industrial white
Dimensions (mm):355 x 240
Cabinet holes (mm):345 x 230
Product certification
Product certification: Meet CE/FCC certification standards
Protection level: IP65(front panel)
Electromagnetic compatibility: industrial level 3
