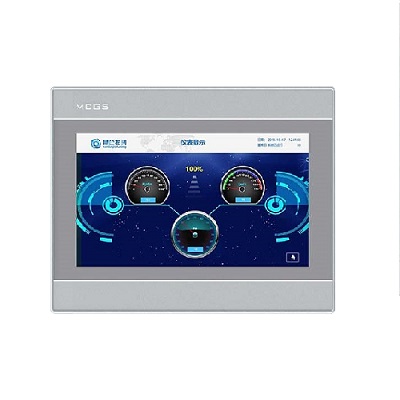

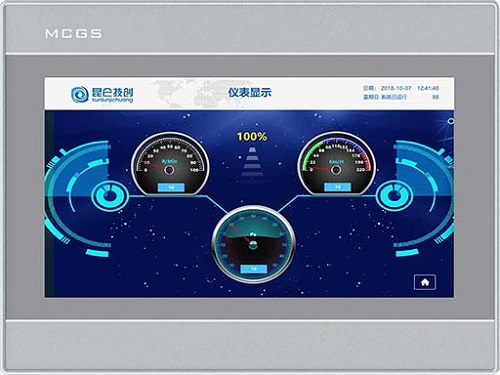

MCGS man-machine interface TPC1031Ni is an intelligent touch screen for the Internet of Things with Cortex-A7 multi-core CPU as the core and 1GHz main frequency. The product is designed with 10.1 inch TFT LCD screen with a resolution of 1024*600 and a four-wire resistance touch screen. At the same time, McgsPro configuration software is pre-installed (running version).
Product characteristics
LCD screen: 10.1"TFT
Backlight type: LED
Display color: 262K
Resolution: 1024 x 600
Display brightness: 300cd/m2
Touch screen: four wire resistance type
Input voltage: 24±20%VDC
Rated power: 7W
Processor: Cortex-A7 Multi-core 1GHz
Memory: 128 MB
System storage: 128 MB
Configuration software: McgsPro
Wireless extension
Wi-Fi interface: Wi-Fi IEEE802.11b /g/n
4G port: None
External interface
Serial interface: Mode 1: C0M1(232),C0M2(485),C0M3(485) Mode 2: C0M1(232),C0M9(422)
USB port: 1XHost
Ethernet port: 1 x 10/100M adaptive
Environmental conditions
Operating temperature: 0℃ -- 50℃
Operating humidity: 5%-90% (no condensation)
Storage temperature: -10 -- 60℃
Storage humidity: 5% -- 90%(no condensation)
Product specification
Case material: cast aluminum panel
Case color: Industrial white
Appearance Size (mm) : 271X213
Cabinet holes (mm):260 x 202
Product certification
Product certification: Meet CE/FCC certification standards
Protection level: IP65(front panel)
Electromagnetic compatibility: industrial level 3
